High Superior Surface Probes(Contact support type) Model SX series

Support function of contact with tolerance slope range of ±4 degrees" added to the most accurate Model S series of ANRITSU-METER.The flexible head allows the temperature sensing part follows and closely contacts the object to be measured, and it's possible to high accurate measure more easily. Specific components may be combined to customize products for the needs of a customer's specific application.

How to order

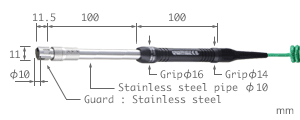

Type K Model SX-171K-01-1-TPC1-ANP
Type E Model SX-171E-01-1-TPC1-ANP

model SX series

Temp. Range	Tolerance	Response time	Durability
-50 to 800°C	±2.5°C *	1.0 s	see table

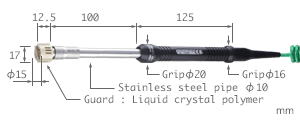

Type K Model SX-171K-10-1-TPC1-ANP
Type E Model SX-171E-10-1-TPC1-ANP

model SX series

Temp. Range	Tolerance	Response time	Durability
-50 to 800°C	±2.5°C *	1.0 s	see table

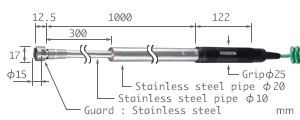

Type K Model SX-371K-01-1-TPC1-ANP
Type E Model SX-371E-01-1-TPC1-ANP

model SX series

Temp. Range	Tolerance	Response time	Durability
-50 to 800°C	±2.5°C *	1.0 s	see table

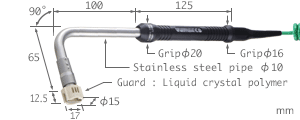

Type K Model SX-161K-01-1-TPC1-ANP
Type E Model SX-161E-01-1-TPC1-ANP

model SX series

Temp. Range	Tolerance	Response time	Durability
-50 to 300°C	±2.5°C *	1.0 s	see table

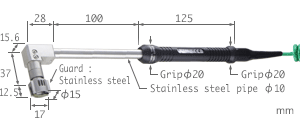

Type K Model SX-173K-01-1-TPC1-ANP
Type E Model SX-173E-01-1-TPC1-ANP

model SX series

Temp. Range	Tolerance	Response time	Durability
-50 to 800°C	±2.5°C *	1.0 s	see table

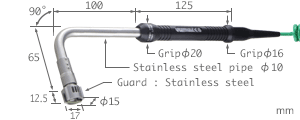

Type K Model SX-174K-01-1-TPC1-ANP
Type E Model SX-174E-01-1-TPC1-ANP

model SX series

Temp. Range	Tolerance	Response time	Durability
-50 to 800°C	±2.5°C *	1.0 s	see table

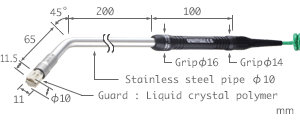

Type K Model SX-163K-01-1-TPC1-ANP
Type E Model SX-163E-01-1-TPC1-ANP

model SX series

Temp. Range	Tolerance	Response time	Durability
-50 to 300°C	±2.5°C *	1.0 s	see table

Type K Model SX-362K-02-1-TPC1-ANP
Type E Model SX-362E-02-1-TPC1-ANP

model SX series

Temp. Range	Tolerance	Response time	Durability
-50 to 300°C	±2.5°C *	1.0 s	see table

* at 100°C Surface

Durability

On the metallic surface at 300°C	more than 100,000 contacts
On the metallic surface at 800°C	more than 60,000 contacts
