Head size |
1 |
φ15mm |
|
3 |
φ10mm |
|
|
Guard Material |
1 |
Liquid crystal polymer (for low temp.) |
|
2 |
SUS304 (for high temp.) |
|
|
Pipe angle |
1 |
Straight |
|
2 |
45 degrees |
|
3 |
90 degrees |
|
4 |
90 degrees (elbow) |
|
|
Thermocouple |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Pipe length |
00 |
30mm |
|
01 |
100mm |
|
02 |
200mm |
|
… |
…… |
|
10 |
1000mm |
|
15 |
1500mm |
|
20 |
2000mm |
|
|
Grip type |
1 |
With grip |
|
|
Cable type
see cable page |
TPC |
Polyurethane |
|
|
Cable Length |
1 |
1000mm |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|

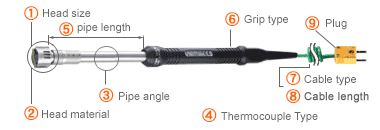

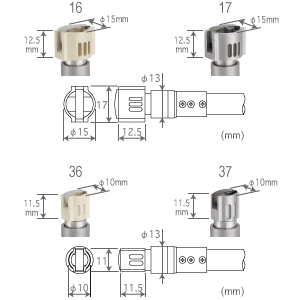

Head Size
Head material

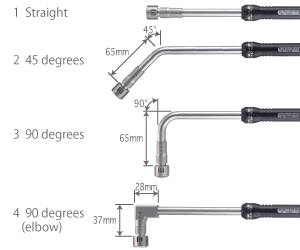

Pipe Angle

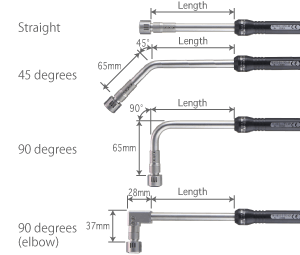

You can choose Pipe Angle as below.
Pipe Length
When the pipe length 600mm (Symbol:06) or more, the pipe outer diameter closed to the head is φ10mm (length: 300mm), and the pipe outer diameter close to the grip is φ20mm.
Example of a probe of pipe length 600mm or more.
(SX-171K-10-1-TPC1-ANP)
Specifications
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
SX-16＊■ / SX-36＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 300°C |
±2.5°C |
SX-17＊■ / SX-37＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
|
500°C < t ≦ 700°C |
±(0.015╳|t|)°C |
|
700°C < t ≦ 800°C |
±(0.02╳|t|)°C |
|
