Features

· Interface
The link to the PC is by USB or RS-232C.

· Number of inputs
6ch model (capable of storing 60,000 measurements) or 12ch model (capable of storing 120,000 measurements)

· Input type
A multi-function temperature / voltage model is also available for simultaneous recording of temperature and voltage.

· Interval
The high-speed model is capable of measuring at 100ms intervals.
*Except remote measurement.

TB-6002＊
Heat-resistant box for 6ch model

Application limit : 300°C / 20min
External dimensions :
320 (W) × 190 (H) × 250 (D) mm (not including protrusions)

Weight : approx. 10kg

TB-6003-SP13＊
Waterproot box for 6ch model

(For the container to φ 98mm)

Application limit : 100°C / 60min
External dimensions :
205 (W) × 155 (H) × 405 (D) mm (not including protrusions)

Weight : approx. 8kg

＊ in Type denotes the type of thermocouple (E or K)

* The above products are sold separately.
Please contact us for more information.

Software specifications

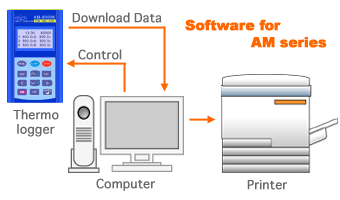

The software enables use of data on a PC.

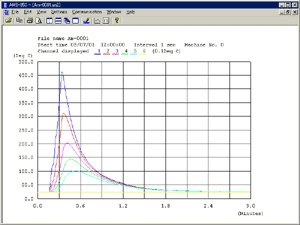

· Graph production

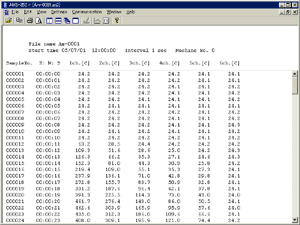

· Formatted document output

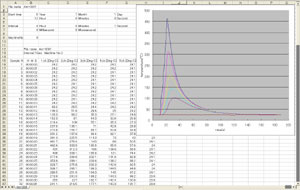

· csv file output

Compatible OSs

Microsoft^® Windows^® XP(SP.3 or newer), Windows Vista^®
Windows^® 7 (for English)

* All PCs under the recommended environment are not guaranteed to work successfully with AMS-850.

* AMS-850 can be used only by the user that has a system administrative right (Adoministrator)

* AMS-850 does not support Mac OS.

* Microsoft^® Windows^® XP, Windows Vista^®, Windows^® 7, and Excel^® are registered trademarks of Microsoft Corporation in the United States and other countries.

* Software is sold separately.

Function of AM-8000 series
