New Products

High Superior Surface Probes Model S series

Model S series probes are high-performance temperature sensors developed using Anritsu Meter's full range of proprietary technologies to achieve the highest levels of accuracy, response time, and durability. These probes are available in four types: for stationary surfaces, for extremely small surfaces, for moving/rotating surfaces, and for self-supporting measurement. Specific components may be combined to customize products for the needs of a customer's specific application. Patented in Japan, the United States, England, France, and Germany.

How to order

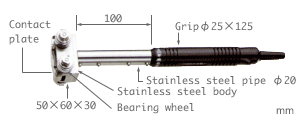

Type K Model S-113K-01-1-TPC1-ANP/ASP
Type E Model S-113E-01-1-TPC1-ANP/ASP

model S series

Temp. Range	Tolerance	Response time	Durability
-50 to 300°C	±2.5°C *	1.0 s	A

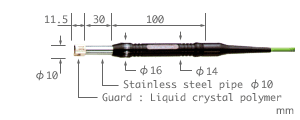

Type K Model S-311K-00-1-TPC1-ANP/ASP
Type E Model S-311E-00-1-TPC1-ANP/ASP

model S series

Temp. Range	Tolerance	Response time	Durability
-50 to 300°C	±2.5°C *	1.0 s	A

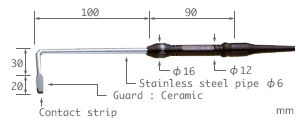

Type K Model S-423K-01-1-TPC1-ANP/ASP
Type E Model S-423E-01-1-TPC1-ANP/ASP

model S series

Temp. Range	Tolerance	Response time	Durability
-50 to 800°C	±2.5°C *	1.0 s	A

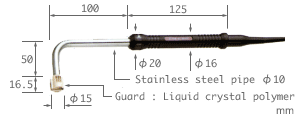

Type K Model S-641K-01-1-TPC1-ANP/ASP
Type E Model S-641E-01-1-TPC1-ANP/ASP

model S series

Temp. Range	Tolerance	Response time	Durability
-50 to400°C	±2.5°C *	3.0 s	A

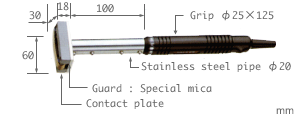

Type K Model S-221K-01-1-TPC1-ANP/ASP
Type E Model S-221E-01-1-TPC1-ANP/ASP

model S series

Temp. Range	Tolerance	Response time	Durability
-50 to 800°C	±2.5°C *	1.0 s	A

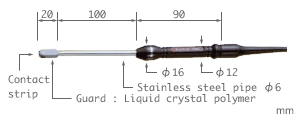

Type K Model S-411K-01-1-TPC1-ANP/ASP
Type E Model S-411E-01-1-TPC1-ANP/ASP

model S series

Temp. Range	Tolerance	Response time	Durability
-50 to 300°C	±2.5°C *	1.0 s	A

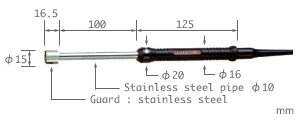

Type K Model S-551K-01-1-TPC1-ANP/ASP
Type E Model S-551E-01-1-TPC1-ANP/ASP

model S series

Temp. Range	Tolerance	Response time	Durability
-50 to 600°C	±2.5°C *	3.0 s	A

Type K Model S-780K-GW1-ANP/ASP
Type E Model S-780E-GW1-ANP/ASP

mo, del S series

Temp. Range	Tolerance	Response time	Durability
-50 to 600°C	±2.5°C *	1.0 s	A

* at 100°C Surface
