Head size
and Form |
1 |
φ15mm (allowable tilt ±4°) |
|
2 |
φ15mm (allowable tilt ±8°) |
|
3 |
φ10mm |
|
4 |
Square 6×7mm |
|
5 |
Guard type for flat moving surface
(60×40mm) |
|
6 |
Wheel type for flat moving surface
(60×50mm) |
|
7 |
Self Supporting type(φ40mm) |
|
|
Guard Material
(Max. Temp.) |
1 |
Liquid crystal polymer (300°C)*1 |
|
2 |
Stainless (800°C)*1*2 |
|
4 |
With wheels (400°C)*3 |
|
5 |
Special mica guard (600°C)*4 |
|
6 |
Ceramics guard (800°C)*4 |
|
7 |
Ceramics (300°C)*5 |
|
8 |
Ceramics (600°C)*5 |
|
*1:Only S-1＊＊, S-2＊＊, S-3＊＊, S-4＊＊
*2It is ceramics for S-4＊＊
*3Only S-64＊, *4Only S-5＊＊, *5Only S-7＊＊ |
|
|
Pipe Angle |
0 |
Nothing (Only S-7＊＊) |
|
1 |
Straight |
|
2 |
45 degrees |
|
3 |
90 degrees |
|
|
Thermocouple |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Pipe length |
00 |
30mm |
|
01 |
100mm |
|
… |
…… |
|
10 |
1000mm |
|
Only S-1＊＊, S-2＊＊, S-3＊＊ |
|
00 |
30mm |
|
01 |
100mm |
|
… |
…… |
|
05 |
500mm |
|
Only S-4＊＊ |
|
01 |
100mm |
|
02 |
200mm |
|
… |
…… |
|
10 |
1000mm |
|
15 |
1500mm |
|
20 |
2000mm |
|
Only S-5＊＊, S-64＊ |
|
Nothing (S-7＊＊) |
|
|
Grip type |
0 |
No Grip |
|
1 |
Standard Grip |
|
Only S-1＊＊, S-2＊＊, S-3＊＊, S-4＊＊, S-5＊＊, S-64＊ |
|
Nothing (S-7＊＊) |
|
|
Cable type
see cable page |
TPC |
Polyurethane (Only 1m) |
|
TC |
Silicon rubber |
|
Only S-1＊＊, S-2＊＊, S-3＊＊, S-4＊＊, S-5＊＊, S-6＊＊ |
|
TS |
Silicone rubber (For S-4＊＊, No Grip type) |
|
GW |
Glass fiber (For S-7＊＊) |
|
|
Cable Length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|

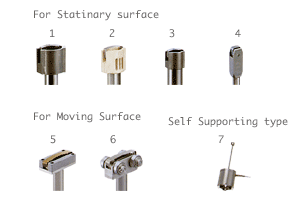

Head Size and Form

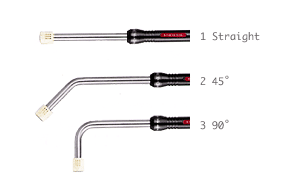

Pipe Angle
You can choose Pipe Angle as below.

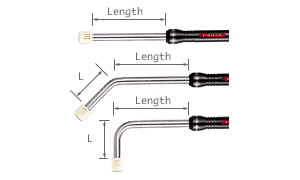

Pipe Length
L = 50mm (For S-1＊＊, S-2＊＊, S-3＊＊)
L = 30mm (For S-4＊＊)
L = 110mm (For S-5＊＊, S-64＊)
Grip Type
S-121K-01-0-TC1-W (No Grip)
|
No Grip |
For device, system, auto-machines,mechanical system etc |
|
Standard |
For handheld measurement |
Specifications
|
Tolerance |
±2.5°C (at 100°C surface) |
|
Response time |
1.0 s |
S-1＊＊, S-2＊＊, S-3＊＊
S-4＊＊, S-7＊＊ |
|
3.0 s |
S-5＊＊, S-64＊ |
|
Durability Rank |
A |
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
S-11＊■ / S-21＊■ / S-31＊■ / S-41＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 300°C |
±2.5°C |
S-12＊■ / S-22＊■ / S-32＊■ / S-42＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
|
500°C < t ≦ 700°C |
±(0.015╳|t|)°C |
|
700°C < t ≦ 800°C |
±(0.02╳|t|)°C |
S-55＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
|
500°C < t ≦ 600°C |
±(0.015╳|t|)°C |
S-56＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
|
500°C < t ≦ 700°C |
±(0.015╳|t|)°C |
|
700°C < t ≦ 800°C |
±(0.02╳|t|)°C |
S-64＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 400°C |
±(0.0075╳|t|)°C |
S-770■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 300°C |
±2.5°C |
S-780■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
|
500°C < t ≦ 600°C |
±(0.015╳|t|)°C |
|
