Tape part

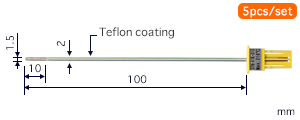

Type K Model STN-11K-010
Type E Model STN-11E-010
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 210°C |
±2.5°C * |
2.0 s |
S |

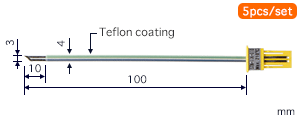

Type K Model STN-21K-010
Type E Model STN-21E-010
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 210°C |
±2.5°C * |
2.0 s |
S |

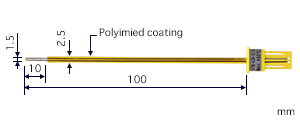

Type K Model STN-31K-010
Type E Model STN-31E-010
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 210°C |
±2.5°C * |
2.0 s |
S |

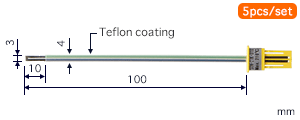

Type K Model STN-41K-010
Type E Model STN-41E-010
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 210°C |
±2.5°C * |
2.0 s |
S |

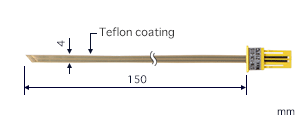

Type K Model STN-12K-015
Type E Model STN-12E-015
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 210°C |
±2.5°C * |
8.0 s |
S |

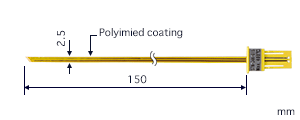

Type K Model STN-34K-015
Type E Model STN-34E-015
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 400°C |
±2.5°C * |
8.0 s |
S |
Type K Model STN-43K-010
Type E Model STN-43E-010
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 400°C |
±2.5°C * |
2.0 s |
S |
* at 100°C
Typical Probes of STN series

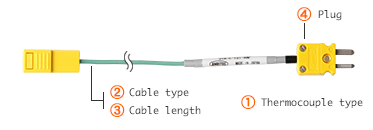

Extension cable

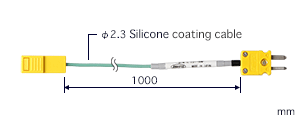

Type K Model STN-K-TS1-ANP
Type E Model STN-E-TS1-ANP
|
|
Thermocouple |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Cable type
see cable page |
TS |
|
|
|
Cable length |
1 |
1m |
|
1.5 |
1.5m |
|
|
Plug
see plug page |
ASP |
Anritsu standard plug |
|
ANP |
Miniature plug |
|
W |
Without plug |
|
