Tape width and shape |
1 |
Standard type : Sharp |
|
2 |
Standard type : Flat |
|
3 |
Narrow type : Sharp |
|
4 |
Narrow type : Flat |
|
|
Coating type and
operating
temperature range |
1 |
Low temperature : Teflon coating (open) |
|
2 |
Low temperature : All teflon coating |
|
3 |
High temperature : Polyimide coating (open) |
|
4 |
High temperature : All polyimide coating |
|
|
Thermocouple |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Tape length |
005 |
50mm |
|
010 |
100mm |
|
015 |
150mm |

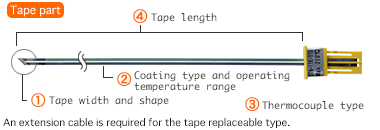

An extension cable is required for the tape replaceable type

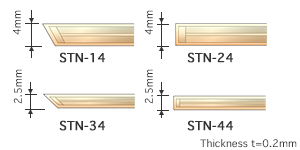

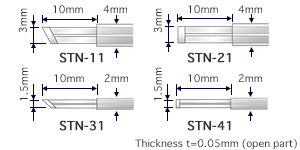

Tape width and shape
You can choose junction from as below.
Tape width : Standard type
 .
Tape width : Narrow type
 .
Coating type
You can choose coating type as below.
Low temperature : Teflon coating (Open)
STN-＊1 Temp.range : -50 to 210°C
Low temperature : All teflon coating
STN-＊2 Temp.range : -50 to 210°C
High temperature : Polyimide coating (Open)
STN-＊3 Temp.range : -50 to 400°C
High temperature : All polyimide coating
STN-＊3 Temp.range : -50 to 400°C
Tape length
You can choose tape length as below.
|
005 |
50mm |
|
100 |
100mm |
|
150 |
150mm |
Specifications
|
Tolerance |
Open : ±2.5°C (at 100°C)
All coating : ±2.5°C (at 100°C) |
|
Response time |
Open : 2.0 s
All coating : 8.0 s |
|
Durability rank |
S |
Attention
Where the probes are not glued or inserted, the operating temperature limits as follows:
|
|
STN-＊1 |
STN-＊2 |
STN-＊3 |
STN-＊4 |
|
Tape ≦ 150mm |
200°C |
180°C |
200°C |
200°C |
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
STN-＊1■ / STN-＊2■
|
Temperature range |
Tolerance (Internal) |
|
-50°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t ≦ 210°C |
±2.5°C |
STN-＊3■ / STN-＊4■
|
Temperature range |
Tolerance (Internal) |
|
-50°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 400°C |
±(0.0075╳|t|)°C |
|
