Needle Type Probes   Model  BT  series
Model BT series probes feature needle tips that can be inserted into semi-solid materials. Needle tips for models with replaceable tips can be purchased separately. Specific components may be combined to customize products for the needs of a customer's specific application.
How to order

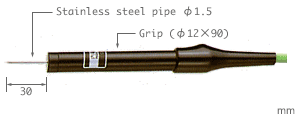

Type K Model BT-31K-TC1-ANP/ASP
Type E Model BT-31E-TC1-ANP/ASP

model BT series

Temp. Range

Tolerance

Response time

Durability

-200 to 300°C

±2.5°C *

1.5 s

S

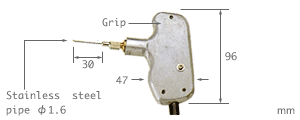

Type K Model BT-72K-TC1-ANP/ASP
Type E Model BT-72E-TC1-ANP/ASP

model BT series

Temp. Range

Tolerance

Response time

Durability

-200 to 300°C

±2.5°C *

1.5 s

S

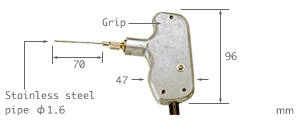

Type K Model BT-11K-TC1-ANP/ASP
Type E Model BT-11E-TC1-ANP/ASP

model BT series

Temp. Range

Tolerance

Response time

Durability

-200 to 210°C

±2.5°C *

0.5 s

C

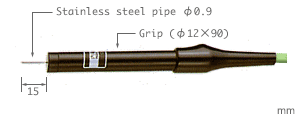

Type K Model BT-92K-TC1-ANP/ASP
Type E Model BT-92E-TC1-ANP/ASP

model BT series

Temp. Range

Tolerance

Response time

Durability

-200 to 500°C

±2.5°C *

3.0 s

B

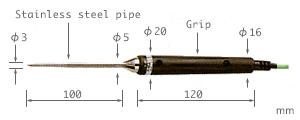

Type K Model BT-22K-TC1-ANP/ASP
Type E Model BT-22E-TC1-ANP/ASP

model BT series

Temp. Range

Tolerance

Response time

Durability

-200 to 300°C

±2.5°C *

1.5 s

C

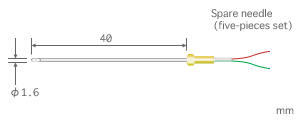

Type K Model BTN-41K
Type E Model BTN-41E

Spare needle

Temp. Range

Tolerance

Response time

Durability

-200 to 300°C

±2.5°C *

1.5 s

S

* at 100°C
