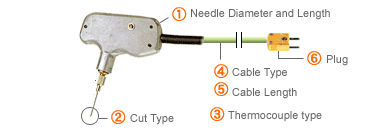

Needle Diameter
and Length
(Max. Temp.) |
1 |
φ0.9mm: 15mm (210°C) |
|
2 |
φ1.5mm: 30mm (300°C) |
|
3 |
φ1.6mm: 30mm (300°C) |
|
4 |
φ1.6mm: 40mm (300°C) |
|
5 |
φ1.6mm: 50mm (300°C) |
|
6 |
φ1.6mm: 60mm (300°C) |
|
7 |
φ1.6mm: 70mm (300°C) |
|
8 |
φ5.0mm: 75mm (500°C) |
|
9 |
φ5.0mm: 100mm (500°C)
(Top is φ3mm) |
|
|
Cut type |
1 |
Cut |
|
2 |
Sharp |
|
|
Thermocouple Type |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Cable type
see cable page |
TC |
|
|
|
Cable Length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|

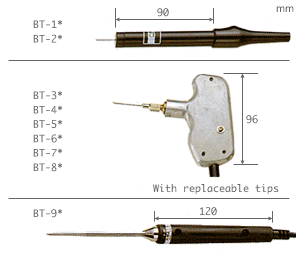

Needle Diameter and Form
You can choose Grip Form as below.
Cut Type
You can choose Cut Type as below.
Specifications
|
Needle
Diameter |
Response
time |
Tolerance
(at 100°C) |
Durability
Rank |
|
BT-1＊ |
0.5 s |
±2.5°C |
C |
|
BT-2＊ |
1.5 s |
±2.5°C |
C |
|
BT-3＊ to BT-7＊ |
1.5 s |
±2.5°C |
S |
|
BS-8＊ |
3.0 s |
±2.5°C |
S |
|
BS-9＊ |
3.0 s |
±2.5°C |
B |
Tolerances
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
BT-1＊■
|
Temperature range |
Tolerance (internal) |
|
-200°C ≦ t < -167°C |
±7.0°C |
|
-167°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t ≦ 210°C |
±2.5°C |
BT-2＊■ / BT-3＊■ / BT-4＊■ / BT-5＊■
BT-6＊■ / BT-7＊■
|
Temperature range |
Tolerance (internal) |
|
-200°C ≦ t < -167°C |
±7.0°C |
|
-167°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t ≦ 300°C |
±2.5°C |
BT-8＊■ / BT-9＊■
|
Temperature range |
Tolerance (internal) |
|
-200°C ≦ t < -167°C |
±7.0°C |
|
-167°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
How to order of BTN series (Spare needle)
|
|
Needle Diameter
and Length
(Max. Temp.) |
3 |
φ1.6mm: 30mm (300°C) |
|
4 |
φ1.6mm: 40mm (300°C) |
|
5 |
φ1.6mm: 50mm (300°C) |
|
6 |
φ1.6mm: 60mm (300°C) |
|
7 |
φ1.6mm: 70mm (300°C) |
|
8 |
φ5.0mm: 75mm (500°C) |
|
|
Cut type |
1 |
Cut |
|
2 |
Sharp |
|
|
Thermocouple Type |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
