General Internal Probes   Model  BS  series
Model BS series probes are internal temperature sensors designed to measure the temperatures of liquid or semi-solid materials. Specific components may be combined to customize products for the needs of a customer's specific application.
How to order

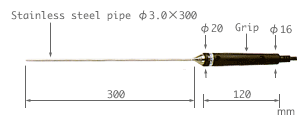

Type K Model BS-21K-010-TC1-ANP/ASP
Type E Model BS-21E-010-TC1-ANP/ASP

model BS series

Temp. Range

Tolerance

Response time

Durability

-200 to 500°C

±2.5°C *

2.5 s

C

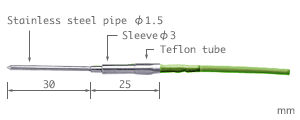

Type K Model BS-91K-003-TS1-ANP/ASP
Type E Model BS-91E-003-TS1-ANP/ASP

model BS series

Temp. Range

Tolerance

Response time

Durability

-200 to 300°C

±2.5°C *

0.5 s

C

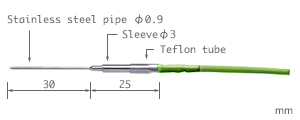

Type E Model BS-22E-010-TC1-ANP/ASP

model BS series

Temp. Range

Tolerance

Response time

Durability

-200 to 200°C

±2.5°C *

20 s

B

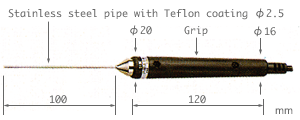

Type K Model BS-31K-030-TC1-ANP/ASP
Type E Model BS-31E-030-TC1-ANP/ASP

model BS series

Temp. Range

Tolerance

Response time

Durability

-200 to 500°C

±2.5°C *

3.0 s

B

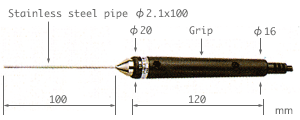

Type K Model BS-11K-003-TS1-ANP/ASP
Type E Model BS-11E-003-TS1-ANP/ASP

model BS series

Temp. Range

Tolerance

Response time

Durability

-200 to 300°C

±2.5°C *

1.5 s

C

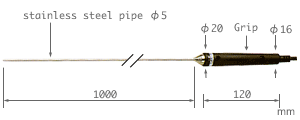

Type K Model BS-51K-100-TC1-ANP/ASP
Type E Model BS-51E-100-TC1-ANP/ASP

model BS series

Temp. Range

Tolerance

Response time

Durability

-200 to 500°C

±2.5°C *

5.0 s

B

* at 100°C
