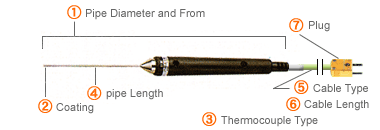

Pipe Diameter
and Form
(Max. Temp.)

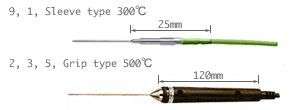

9

φ0.9mm: Sleeve type (300°C)

1

φ1.5mm: Sleeve type (300°C)

2

φ2.1mm: Grip type (500°C)

3

φ3.0mm: Grip type (500°C)

5

φ5.0mm: Grip type (500°C)

Coating

1

Not coating

2

Teflon coating
(BS-5* cannot be manufactured.)

Thermocouple
Type

K

Chromel-Alumel

E

Chromel-Constantan

Pipe Length

003

30mm

005

50mm

008

80mm

010

100mm

020

200mm

030

300mm

040

400mm

050

500mm

100

1000mm

The pipe length is fixed for certain pipe diameters.
For more information, see the table to the right.

Cable type
see cable page

TS

For BS-9＊, BS-1＊ (Sleeve type)

TC

For BS-2＊, BS-3＊, BS-5＊ (Grip type)

Cable Length

1

1000mm

1.5

1500mm

2

2000mm

2.5

2500mm

…

……

Plug
see plug page

ANP

ASP

W

Pipe Diameter (mm)

BS-9＊
(φ0.9)

BS-1＊
(φ1.5)

BS-2＊
(φ2.1)

BS-3＊
(φ3.0)

BS-5＊
(φ5.0)

003:

◯

◯

—

—

—

005:

◯

◯

◯

—

—

008:

◯

◯

—

—

—

010:

◯

◯

◯

◯

—

015:

—

◯

◯

◯

—

020:

—

—

◯

◯

—

030:

—

—

—

◯

—

050:

—

—

—

◯

◯

100:

—

—

—

—

◯

Pipe
Diameter

Response
time

Tolerance

Durability
Rank

BS-9＊

0.5 s

±2.5°C

C

BS-1＊

1.5 s

±2.5°C

C

BS-2＊

2.5 s

±2.5°C

B

BS-3＊

3.0 s

±2.5°C

B

BS-5＊

5.0 s

±2.5°C

B

Teflon coating

20 s

±2.5°C

—*

Temperature range

Tolerance (Internal)

-200°C ≦ t < -167°C

±7.0°C

-167°C ≦ t < -40°C

±3.5°C

-40°C ≦ t ≦ 300°C

±2.5°C

Temperature range

Tolerance (Internal)

-200°C ≦ t < -167°C

±7.0°C

-167°C ≦ t < -40°C

±3.5°C

-40°C ≦ t ≦ 200°C

±2.5°C

Temperature range

Tolerance (Internal)

-200°C ≦ t < -167°C

±7.0°C

-167°C ≦ t < -40°C

±3.5°C

-40°C ≦ t < 333°C

±2.5°C

333°C ≦ t ≦ 500°C

±(0.0075╳|t|)°C
