General Moving / Rotating Surface Probes Model U series

Model U series probes offer minimal coefficient of friction between the sensor and measuring surface, making them ideal for measuring the temperatures of moving or rotating surfaces. Specific components may be combined to customize products for the needs of a customer's specific application.

How to order

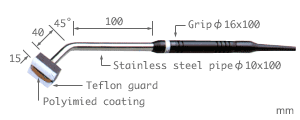

Type K Model U-112K-00-D0-1-TC1-ANP/ASP
Type E Model U-112E-00-D0-1-TC1-ANP/ASP

model U series

Temp. Range	Tolerance	Response time	Durability
-50 to 250°C	±2.5°C *	2.0 s	A

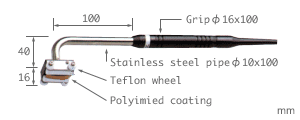

Type K Model U-121K-00-D0-1-TC1-ANP/ASP
Type E Model U-121E-00-D0-1-TC1-ANP/ASP

model U series

Temp. Range	Tolerance	Response time	Durability
-50 to 200°C	±2.5°C *	2.0 s	A

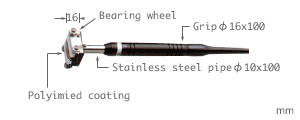

Type K Model U-133K-00-D0-1-TC1-ANP/ASP
Type E Model U-133E-00-D0-1-TC1-ANP/ASP

model HHT series

Temp. Range	Tolerance	Response time	Durability
-50 to 250°C	±2.5°C *	2.0 s	A

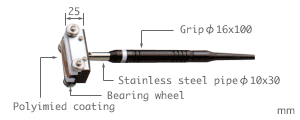

Type K Model U-211K-00-D0-1-TC1-ANP/ASP
Type E Model U-211E-00-D0-1-TC1-ANP/ASP

model HHT series

Temp. Range	Tolerance	Response time	Durability
-50 to 250°C	±2.5°C *	3.5 s	A

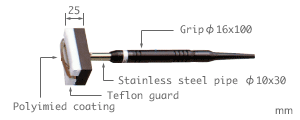

Type K Model U-221K-00-D0-1-TC1-ANP/ASP
Type E Model U-221E-00-D0-1-TC1-ANP/ASP

model HHT series

Temp. Range	Tolerance	Response time	Durability
-50 to 200°C	±2.5°C *	3.5 s	A

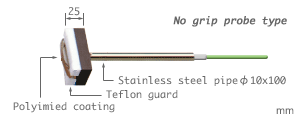

Type K Model U-211K-01-D0-0-TC1-W
Type E Model U-211E-01-D0-0-TC1-W

model HHT series

Temp. Range	Tolerance	Response time	Durability
-50 to 250°C	±2.5°C *	3.5 s	A

* at 100°C Surface
