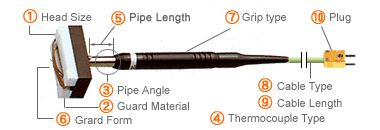

Head size |
1 |
25×32mm (Guard:U-＊1＊)
37×36mm(Wheel:U-＊2＊, U-＊3＊) |
|
2 |
29×60mm (Guard:U-＊1＊)
40×66mm(Wheel:U-＊2＊, U-＊3＊) |
|
|
Guard Material
(Max. Temp.) |
1 |
Teflon guard(250°C) |
|
2 |
Bearing wheel (200°C) |
|
3 |
Teflon wheel (250°C) |
|
1 to 3 : Contact section is polyimide-coated. |
|
4 |
Teflon guard (200°C) |
|
5 |
Bearing wheel (200°C) |
|
6 |
Teflon wheel (200°C) |
|
4 to 6 : Contact section is Teflon-coated. |
|
7 |
Teflon guard (250°C) |
|
8 |
Bearing wheel (200°C) |
|
9 |
Teflon wheel (250°C) |
|
7 to 9 : Contact section has no coating. |
|
|

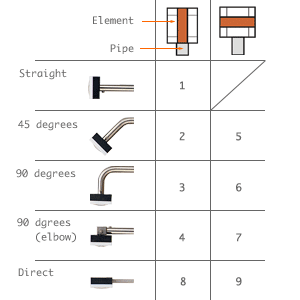

Pipe Angle |
1 |
Straight |
|
2 |
45 degrees |
|
3 |
90 degrees |
|
4 |
90 degrees (elbow) |
|
5 |
45 degrees * |
|
6 |
90 degrees * |
|
7 |
90 degrees (elbow) * |
|
8 |
Direct |
|
9 |
Direct * |
|
* element direction of right angle |
|
|
Thermocouple |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Pipe length |
00 |
30mm |
|
01 |
100mm |
|
02 |
200mm |
|
03 |
300mm |
|
04 |
400mm |
|
05 |
500mm |
|
|
Guard Form |
D0 to D4 : See right |
|
|
Grip type |
0 |
No Grip |
|
1 |
Standard Grip |
|
|
Cable type
see cable page |
TC |
|
|
|
Cable Length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|
Head SizeGuard Material
You can choose head size as below.
Pipe Angle
You can choose Pipe Angle as below.

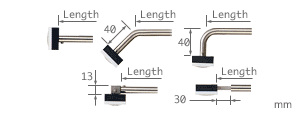

Pipe Length
Pipe length means each L.

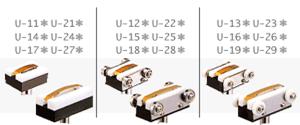

Guard Form
|
|
U-11＊
U-14＊
U-17＊ |
U-21＊
U-24＊
U-27＊ |
U-＊2＊, U-＊3＊
U-＊5＊, U-＊6＊
U-＊8＊, U-＊9＊ |
|
D0 |
φ300 to flat |
φ400 to flat |
flat only * |
|
D1 |
- |
φ300 to 420 |
— |
|
D2 |
φ160 to 320 |
φ160 to 320 |
— |
|
D3 |
φ100 to 200 |
φ100 to 200 |
— |
|
D4 |
φ60 to 120 |
φ60 to 120 |
— |
* U-1＊＊ can be used for diameters of up toφ300mm in case of the D0 model.
* U-2＊＊ can be used for diameters of up toφ400mm in case of the D0 model.
Grip Type
U-211K-01-0-TC1-W (No Grip)
|
No Grip |
For device, system, auto-machines,mechanical system etc |
|
Standard |
For handheld measurement |
Specifications
|
Tolerance |
±2.5°C (at 100°C surface) |
|
Response time |
U-1＊＊ : 2.0 s
U-2＊＊ : 3.5 s |
|
Durability rank |
A |
|
Speed limit |
U-1＊＊ : 400m / min
U-2＊＊ : 600m / min |
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
U-11＊■ / U-13＊■ / U-17＊■ / U-19＊■
U-21＊■ / U-23＊■ / U-27＊■ / U-29＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 200°C |
±2.5°C |
|
200°C < t ≦ 250°C |
±3.0°C |
U-12＊■ / U-14＊■ / U-15＊■ / U-16＊■ / U-18＊■
U-22＊■ / U-24＊■ / U-25＊■ / U-26＊■ / U-28＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 200°C |
±2.5°C |
|
