Micro Sensor Probes Model CS series

Model CS series probes are small surface temperature sensors designed to measure the temperature of stationary surface. Specific components may be combined to customize products for the needs of a customer's specific application.

How to order

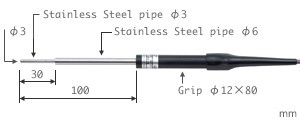

Type K Model CS-01K-010-1-TC1-ANP/ASP
Type E Model CS-01E-010-1-TC1-ANP/ASP

model CS series

Temp. Range	Tolerance	Response time	Durability
-50 to 400°C	±3.0°C *	3.0 s	A

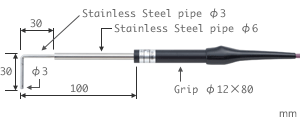

Type K Model CS-11K-010-1-TC1-ANP/ASP
Type E Model CS-11E-010-1-TC1-ANP/ASP

model CS series

Temp. Range	Tolerance	Response time	Durability
-50 to 400°C	±2.5°C *	2.0 s	A

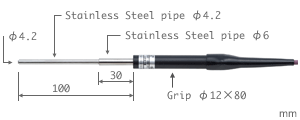

Type K Model CS-21K-010-1-TC1-ANP/ASP
Type E Model CS-21E-010-1-TC1-ANP/ASP

model CS series

Temp. Range	Tolerance	Response time	Durability
-50 to 400°C	±2.5°C *	2.0 s	A

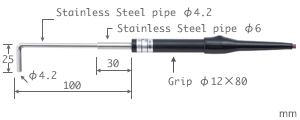

Type K Model CS-03K-010-1-TC1-ANP/ASP
Type E Model CS-03E-010-1-TC1-ANP/ASP

model CS series

Temp. Range	Tolerance	Response time	Durability
-50 to 400°C	±3.0°C *	3.0 s	A

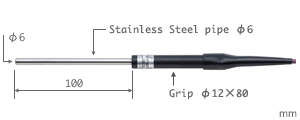

Type K Model CS-13K-010-1-TC1-ANP/ASP
Type E Model CS-13E-010-1-TC1-ANP/ASP

model CS series

Temp. Range	Tolerance	Response time	Durability
-50 to 400°C	±2.5°C *	2.0 s	A

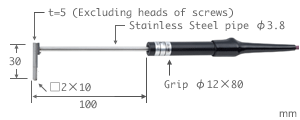

Type K Model CS-36K-010-1-TC1-ANP/ASP
Type E Model CS-36E-010-1-TC1-ANP/ASP

model CS series

Temp. Range	Tolerance	Response time	Durability
-50 to 400°C	±2.5°C *	2.0 s	A

* at 100°C Surface
