Head size and Form |
0 |
φ 3.0mm |
|
1 |
φ 4.2mm |
|
2 |
φ 6.0mm |
|
3 |
2 × 10mm |
|
|
Pipe Angle |
1 |
Straight |
|
3 |
90 degrees |
|
6 |
90 degrees
(Element direction of right angle) |
|
|
Thermocouple |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Pipe length |
005 |
50mm |
|
010 |
100mm |
|
015 |
150mm |
|
|
Grip type |
0 |
No Grip |
|
1 |
Standard Grip |
|
|
Cable type
see cable page |
TS |
For Non Grip type |
|
TC |
For Standard Grip type |
|
|
Cable Length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|

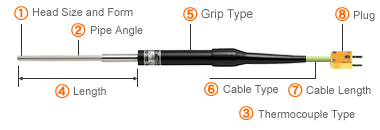

Head Size and Form
You can choose head size and Form as below.

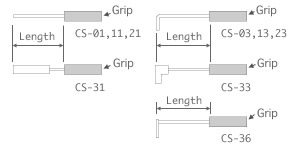

Pipe Angle
|
CS-01 |
|
|
CS-11 |
|
|
CS-21 |
|
|
CS-31 |
|
|
CS-03 |
|
|
CS-13 |
|
|
CS-23 |
|
|
CS-33 |
|
|
CS-36 |
|
* No grip, φ6 pipe length will be 50 mm.
Pipe Length
|
|
005 |
010 |
015 |
|
CS-01 |
50mm * |
100mm |
150mm |
|
CS-11 |
50mm * |
100mm
150mm |
|
CS-21 |
50mm |
100mm |
150mm |
|
CS-31 |
— |
100mm * |
150mm |
|
CS-03 |
50mm * |
100mm |
150mm |
|
CS-13 |
50mm * |
100mm |
150mm |
|
CS-23 |
50mm |
100mm |
150mm |
|
CS-33 |
50mm * |
100mm |
150mm |
|
CS-36 |
50mm * |
100mm |
150mm |
* means that the probe without a grip is not available
Grip Type
CS-11K-010-0-TS1-W (No Grip)
|
No Grip |
For device, system, auto-machines,mechanical system etc |
|
Standard |
For handheld measurement |
Specifications
|
Tolerance |
CS-0＊ |
±3.0°C * |
|
CS-1＊, CS-2＊, CS-3＊ |
±2.5°C * |
|
Response
time |
CS-0＊ |
3.0 s |
|
CS-1＊, CS-2＊, CS-3＊ |
2.0 s |
|
Durability rank |
A |
|
Max. Temp. |
400°C |
* at 100°C surface
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
CS-0＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 100°C |
±3.0°C |
|
100°C < t ≦ 200°C |
±5.0°C |
|
200°C < t ≦ 300°C |
±7.5°C |
|
300°C < t ≦ 400°C |
±10.0°C |
CS-1＊■ / CS-2＊■ / CS-3＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 100°C |
±2.5°C |
|
100°C < t ≦ 200°C |
±3.1°C |
|
200°C < t ≦ 300°C |
±5.0°C |
|
300°C < t ≦ 400°C |
±6.3°C |
|
