Magnet Probes Model MG series

Model MG series probes are temperature sensors designed for stationary surfaces. Built-in magnets allow these probes to be attached to measurement targets. Specific components may be combined to customize products for the needs of a customer's specific application

How to order

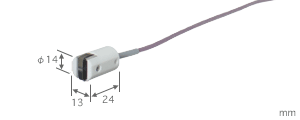

Type K Model MG-11K-TS1-ANP/ASP
Type E Model MG-11E-TS1-ANP/ASP

model MG series

Temp. Range	Tolerance	Response time	Durability
-50 to 250°C	±2.5°C *	2.0 s	A

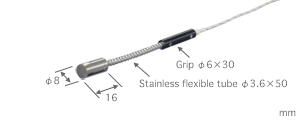

Type K Model MG-14K-GW1-ANP/ASP
Type E Model MG-14E-GW1-ANP/ASP

model WE series

Temp. Range	Tolerance	Response time	Durability
-50 to 400°C	±2.5°C *	2.0 s	A

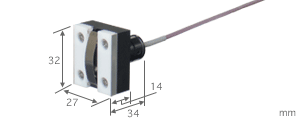

Type K Model MG-21K-TS1-ANP/ASP
Type E Model MG-21E-TS1-ANP/ASP

model MG series

Temp. Range	Tolerance	Response time	Durability
-50 to 250°C	±2.5°C *	2.0 s	A

Type K Model MG-24K-GW1-ANP/ASP
Type E Model MG-24E-GW1-ANP/ASP

model WE series

Temp. Range	Tolerance	Response time	Durability
-50 to 400°C	±2.5°C *	2.0 s	A

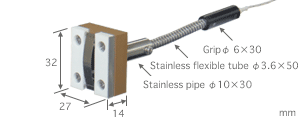

Type K Model MG-34K-TS1-ANP/ASP
Type E Model MG-34E-TS1-ANP/ASP

model MG series

Temp. Range	Tolerance	Response time	Durability
-50 to 400°C	±2.5°C *	2.0 s	A

* at 100°C Surface
