How to order of MG series
|
|
Head Size |
1 |
27×32mm |
|
2 |
φ14mm |
|
3 |
φ8mm |
|
|
Temp. range
and Grip type |
1 |
-50 to 200°C (no grip) |
|
2 |
-50 to 400°C (no grip) |
|
3 |
-50 to 200°C (standard grip) |
|
4 |
-50 to 400°C (standard grip) |
|
|
Thermocouple Type |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Cable type
see cable page |
TS |
φ2.3mm Silicone rubber insulated cable
(for MG-11, MG-13, MG-21, MG-23) |
|
GW |
1.2×1.7mm Grass fiber insulated cable
(for MG-12, MG-14, MG-22, MG-24, MG-34) |
|
TA |
φ9mm Teflon insulated cable
Maximum 3 meters (for MG-33) |
|
|
Cable length |
1 |
1000mm |
|
2 |
2000mm |
|
3 |
3000mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|

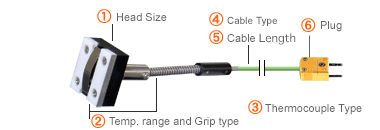

Head Size
You can choose Head size as below.
Temp. range and Grip type
You can choose Temp. range and Grip type as below.
Specifications
|
Tolerance |
±2.5°C (at 100°C surface) |
|
Response time |
2.0 s |
|
Durability rank |
A |
|
Max. Temp |
MG-＊1, MG-＊3 : 200°C
MG-＊2, MG-＊4 : 400°C |
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
MG-11■ / MG-13■ /MG-21■ MG-23■ / MG-33■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 100°C |
±2.5°C |
|
100°C < t ≦ 200°C |
±3.1°C |
|
200°C < t ≦ 300°C |
±4.0°C (250°C or less) |
MG-12■ / MG-14■ / MG-22■ / MG-24■ / MG-34■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 100°C |
±2.5°C |
|
100°C < t ≦ 200°C |
±3.1°C |
|
200°C < t ≦ 300°C |
±5.0°C |
|
300°C < t ≦ 400°C |
±7.2°C |
|
