General Stationary Surface Probes A series

Model A series probes are general-purpose temperature sensors designed to measure the temperatures of stationary surfaces. Specific components may be combined to customize products for the needs of a customer's specific application.

How to order

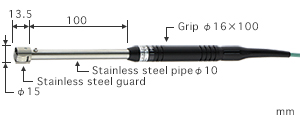

Type K Model A-131K-00-1-TC1-ANP/ASP
Type E Model A-131E-00-1-TC1-ANP/ASP
model A series

Temp. Range	Tolerance	Response time	Durability
-50 to 500°C	±2.5°C *	1.5 s	A

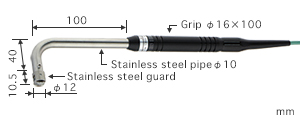

Type K Model A-231K-00-1-TC1-ANP/ASP
Type E Model A-231E-00-1-TC1-ANP/ASP
model A series

Temp. Range	Tolerance	Response time	Durability
-50 to 500°C	±2.5°C *	1.5 s	A

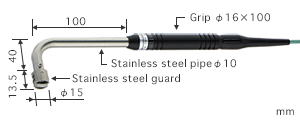

Type K Model A-233K-01-1-TC1-ANP/ASP
Type E Model A-233E-01-1-TC1-ANP/ASP

model A series

Temp. Range	Tolerance	Response time	Durability
-50 to 500°C	±2.5°C *	1.5 s	A

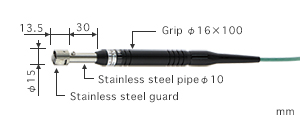

Type K Model A-314K-00-1-TC1-ANP/ASP
Type E Model A-314E-00-1-TC1-ANP/ASP
model A series

Temp. Range	Tolerance	Response time	Durability
-50 to 300°C	±2.5°C *	1.5 s	A

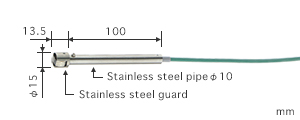

Type K Model A-211K-00-0-TC1-W
Type E Model A-211E-00-0-TC1-W

model A series

Temp. Range	Tolerance	Response time	Durability
-50 to 300°C	±2.5°C *	1.5 s	A

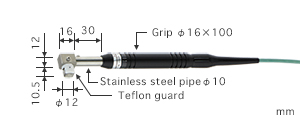

Type K Model A-231K-01-0-TC1-W
Type E Model A-231E-01-0-TC1-W
model A series

Temp. Range	Tolerance	Response time	Durability
-50 to 500°C	±2.5°C *	1.5 s	A

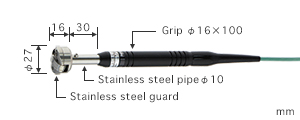

Type K Model A-241K-01-1-TC1-ANP/ASP
Type E Model A-241E-01-1-TC1-ANP/ASP
model A series

Temp. Range	Tolerance	Response time	Durability
-50 to 800°C	±2.5°C *	1.5 s	A

Type K Model A-333K-01-1-TC1-ANP/ASP
Type E Model A-333E-01-1-TC1-ANP/ASP
model A series

Temp. Range	Tolerance	Response time	Durability
-50 to 500°C	±2.5°C *	1.5 s	A

* at 100°C Surface
