Thermocouple Type
Standard Anritsu Meter products are designed to use Type-K or Type-E thermocouples.
Note that the main thermometer unit must be connected to a probe of the designated type for accurate temperature measurements.
Anritsu Meter can also manufacture certain models for use with Type-J or Type-T thermocouples. Please contact us for more information.
Thermocouple Type
|
Type |
Former Symbol |
Composing materials |
|
K |
CA |
(+) : Chromel
(-) : Alumel |
|
E |
CRC |
(+) : Chromel
(-) : Constantan |
|
J |
IC |
(+) : Iron
(-) : Constantan |
|
T |
CC |
(+) : Copper
(-) : Constantan |
|
R |
(PR) |
(+) : Platinum / 13% Rhodium
(-) : Pure Platinum |
Connection

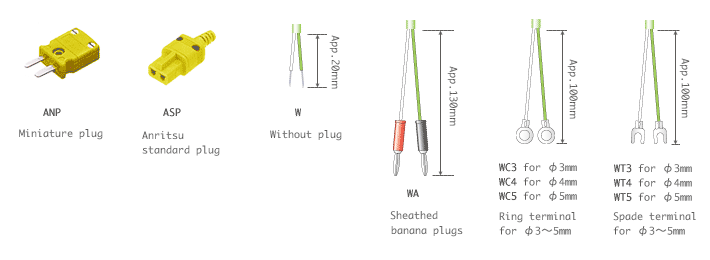

Standard Anritsu Meter products are designed to use either the ASP or ANP plug.
Note that the main thermometer unit and probe must have the same connector types.
Anritsu Meter can also manufacture certain probe models with the following connector types. Please contact us for more information.
* WA, WC, and WT are made of generally available electrical materials.
Note that temperature changes in these parts may result in measurement errors.
Cable Type
For information on standard probe compensating lead wires (cords), please refer to the probe product pages.
Anritsu Meter can also manufacture certain probe models with the following compensating lead wires. Please contact us for more information.
Type : K
|
Model |
Outer diameter
Conductor |
Sheath Material |
Heat
Resistant |
Resistance |
Feature |
|
TS-K |
φ2.3mm
7 / 0.1 × 2 |
Silicone rubber |
240°C |
18Ω / m |
Thin, Flexible |
|
TF-K |
φ2.0mm
7 / 0.1 × 2 |
Teflon |
230°C |
19Ω / m |
Resistant to chemicals |
|
TC-K |
φ4.0mm
14 / 0.1 × 2 |
Silicone rubber |
240°C |
9.3Ω / m |
Flexible |
|
TCG-K |
φ4.5mm
14 / 0.1 × 2 |
Silicone rubber with Stainless steel |
240°C |
9.3Ω / m |
Flexible, Resistant to external damage |
|
GW-K |
1.2×1.7mm
0.32 × 2 |
Glass fiber |
300°C |
12.1Ω / m |
Highly resistant to heat |
|
SG-K |
φ3.0mm
0.65 × 2 |
Glass fiber with Stainless steel |
400°C |
3Ω / m |
Moderate hardness
Highly resistant to heat
Resistant to external damage |
|
TPC-K |
φ3.8mm
14 / 0.1 × 2 |
Polyurethane |
110°C |
18Ω / m |
Coiled cord
Contraction /
extension range : 0.3 to 1.5m |
Type : E
|
Model |
Outer diameter
Conductor |
Sheath Material |
Heat
Resistant |
Resistance |
Feature |
|
TS-E |
φ2.3mm
7 / 0.1 × 2 |
Silicone rubber |
240°C |
22Ω / m |
Thin, Flexible |
|
TF-E |
φ2.0mm
7 / 0.1 × 2 |
Teflon |
230°C |
22Ω / m |
Resistant to chemicals |
|
TC-E |
φ4.0mm
14 / 0.1 × 2 |
Silicone rubber |
240°C |
11.5Ω / m |
Flexible |
|
TCG-E |
φ4.5mm
14 / 0.1 × 2 |
Silicone rubber with Stainless steel |
240°C |
11.5Ω / m |
Flexible, Resistant to external damage |
|
GW-E |
1.2×1.7mm
0.32 × 2 |
Glass fiber |
300°C |
14.7Ω / m |
Highly resistant to heat |
|
SG-E |
φ3.0mm
0.65 × 2 |
Glass fiber with Stainless steel |
400°C |
3.6Ω / m |
Moderate hardness
Highly resistant to heat
Resistant to external damage |
|
TPC-E |
φ3.8mm
14 / 0.1 × 2 |
Polyurethane |
110°C |
22Ω / m |
Coiled cord
Contraction /
extension range : 0.3 to 1.5m |
* [14 / 0.1 × 2] in the conductor column indicates that the cord contains two conductor wires (one pair).
Each conductor wire is a twisted wire composed of 14 0.1-mm-diameter wire strands.
|
