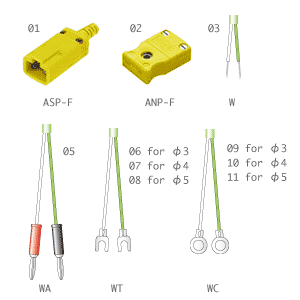

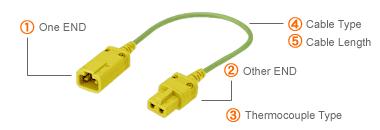

One END
(Probe side) |
01 |
ASP-F |
|
02 |
ANP-F |
|
03 |
W (Without Plug) |
|
05 |
WA (Sheathed banana plugs) |
|
06 |
WT3 (Spade terminal for φ3mm) |
|
07 |
WT4 (Spade terminal for φ4mm) |
|
08 |
WT5 (Spade terminal for φ5mm) |
|
09 |
WC3 (Ring terminal for φ3mm) |
|
10 |
WC4 (Ring terminal for φ4mm) |
|
11 |
WC5 (Ring terminal for φ5mm) |
|
|

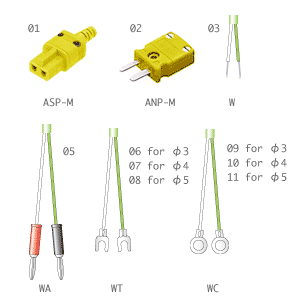

Other END
(Thermometer side) |
01 |
ASP-M |
|
02 |
ANP-M |
|
03 |
W (Without Plug) |
|
05 |
WA (Sheathed banana plugs) |
|
06 |
WT3 (Spade terminal for φ3mm) |
|
07 |
WT4 (Spade terminal for φ4mm) |
|
08 |
WT5 (Spade terminal for φ5mm) |
|
09 |
WC3 (Ring terminal for φ3mm) |
|
10 |
WC4 (Ring terminal for φ4mm) |
|
11 |
WC5 (Ring terminal for φ5mm) |
|
|
Thermocouple Type |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Cable Type
see cable page |
TC |
|
|
TS |
|
|
TF |
|
|
SG |
|
|
|
Cable Length |
00 |
0.3m |
|
01 |
1m |
|
02 |
2m |
|
… |
…… |
|
10 |
10m |
