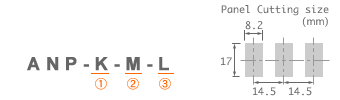

ANP plug
|
|
Thermocouple
Type (Color) |
K |
Chromel-Alumel (Yellow)
(ANP-*-*-H. is Ivory) |
|
E |
Chromel-Constantan (Purple)
(ANP-*-*-H. is Ivory) |
|
T |
Copper-Constantan (Blue) |
|
J |
Iron-Constantan (Black) |
|
V |
For Voltmeter (White) |
|
|
Body Shape |

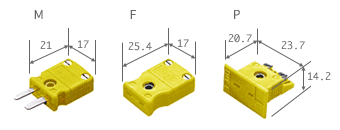

M |
See picture |
|
F |
See picture (Not for Type V) |
|
P |
See picture (Only Body Material L) |
|
|
Body Material |
L |
Glass Filled Nylon (150°C)
(Only Type K or Type E) |
|
H |
Liquid Crystal Polymer (300°C)
(Only Type K or Type E) |
ASP plug
|
|
Thermocouple
Type (Color) |
K |
Chromel-Alumel (Yellow) |
|
E |
Chromel-Constantan (Purple) |
|
|
Body Shape |

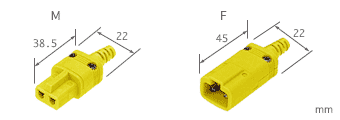

M |
See picture |
|
F |
See picture |
|
|
Boshing size |
φ2.5 |
For TS cable |
|
φ3.5 |
For SG cable |
|
φ4.2 |
For TC cable, TCG cable, and TPC cable |

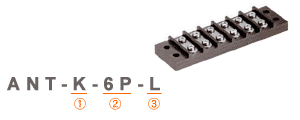

ANT
|
|
Thermocouple Type |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Number of Terminals |
3P |
3 Terminals |
|
6P |
6 Terminals |
|
|
Material
(Max. Temp.) |
L |
Phenol (150°C) |
|
H |
Glass cloth board
(350°C) |
ANJ series
|
|
Thermocouple Type |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Form |

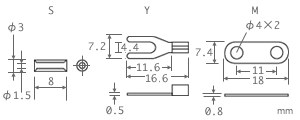

S |
See picture |
|
Y |
See picture |
|
M |
See picture |
THERMOCOUPLE CABLE
|
Type |
Model |
Sheath material |
Diameter |
Heat resistant |
|
K |
TS-K |
Silicone rubber |
φ2.3mm |
240°C |
|
TF-K |
Teflon |
φ2mm |
230°C |
|
TC-K |
Silicone rubber |
φ4mm |
240°C |
|
TCG-K |
Silicone rubber with Stainless steel |
φ4.5mm |
240°C |
|
GW-K |
Glass fiber |
1.2×1.7mm |
300°C |
|
SG-K |
Glass fiber with Stainless steel |
φ3mm |
400°C |
|
TPC-K |
Polyurethane |
φ3.8mm |
110°C |
|
E |
TS-E |
Silicone rubber |
φ2.3mm |
240°C |
|
TF-E |
Teflon |
φ2mm |
230°C |
|
TC-E |
Silicone rubber |
φ4mm |
240°C |
|
TCG-E |
Silicone rubber with Stainless steel |
φ4.5mm |
240°C |
|
GW-E |
Glass fiber |
1.2×1.7mm |
300°C |
|
SG-E |
Glass fiber with Stainless steel |
φ3mm |
400°C |
|
TPC-E |
Polyurethane |
φ3.8mm |
110°C |
* Specify the cable type and length.
* The cable length can specified in 1m increments.
|
|
