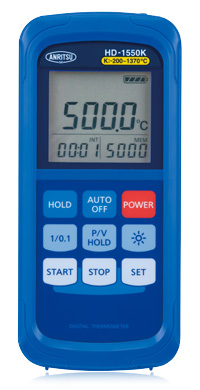

Model HD-1500 · HD-1550
HOLD
The thermometer stops measurement by the HOLD key and holds the present readings.
Auto power-off
The thermometer will turn the power off automatically after 5minutes.
Resolution change
Press the 1/0.1 key to change the resolution of readings.
P/V Hold
The peak (Max.) value and the valley (Min.) value can be displayed by the P/V HOLD key on the sub-display.
Backlight
The backlight will operate by the Backlight key and the LCD display will be visible even in a dark place.
Memory function
Stores readings at user-selected time intervals.
User specified time interval and the remaining amount of memory are displayed on the sub-display.
Supplied accessories
|
Test report |
Soft case model : SCHD
(Thermometer not included) |
Hand strap
(Thermometer not included) |
|
|
|
|
|
|
Supplied accessories by model · Optional accessories
|
Supplied accessories by model |
Optional accessories |
|
Communication cable
Model : AM-USB (for USB) |
Software (CD-ROM)
Model : AMS-100 |
AC-Adaptor
Model : A-115-200-HR-R(for AC115)
Model : A-220-200-HR-R(for AC220)
* Not CE-approval |
|
|
|
|
Software
Data stored in memory can be transmitted to a personal computer through USB interface and can converted into CSV files.
Easily create graphs and tables from CSV files by Microsoft® Excel® or other spreadsheet software.
Operational environment os software (AMS-100)
|
OS |
Microsoft® Windows® XP(SP.3 or newer), Windows Vista®
Windows® 7 |
|
Memory · Hard-disk space |
Normal operating environment of OS |
|
Communication interface |
USB1.1 |
* All PCs under the recommended environment are not guaranteed to work successfully with AMS-100.
* AMS-100 can be used only by the user that has a system administrative right (Adoministrator)
* AMS-100 does not support Mac OS.
* Microsoft® Windows® XP, Windows Vista®, Windows® 7, and Excel® are registered trademarks of Microsoft Corporation in the United States and other countries.
Input connector
|
2 types of connectors available |
|
|
|
|
ANP : Miniature size connector
Model : HD-1＊5＊ |
ASP : Standard size connector
Model : HD-1＊0＊ |
|
