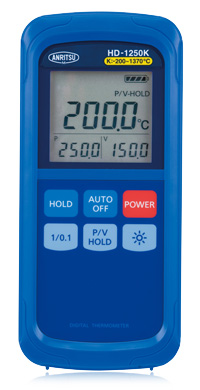

Model HD-1200 · HD-1250

Waterproof

Waterproof specifications : Equivalent to IPX5

Protected against water jets-Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m² for 3 minutes from a distance of 3 meters.

(*Analog output type is not Waterproof)

HOLD

The thermometer stops measurement by the HOLD key and holds the present readings.

Auto power-off

The thermometer will turn the power off automatically after 5minutes.

Resolution change

Press the 1/0.1 key to change the resolution of readings.

P/V Hold

The peak (Max.) value and the valley (Min.) value can be displayed by the P/V HOLD key on the sub-display.

Backlight

The backlight will operate by the Backlight key and the LCD display will be visible even in a dark place.

Analog output type

Model HD-1201 · HD-1251 :1mV/°C

Model HD-1202 · HD-1252 :10mV/°C

(*Not Waterproof)

Supplied accessories

Supplied accessories by model · Optional accessories

Supplied accessories by model

Analog autput cable
Model : ANGHA-1.5
for HD-12＊1 HD-12＊2

Optional accessories

AC-Adaptor
Model : A-115-200-HR-R (for AC115)
Model : A-220-200-HR-R (for AC220)
* Not CE-approval
for HD-12＊1 HD-12＊2

Input connector
