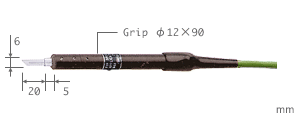

Type K Model 502K-TC1-ANP
Type E Model 502E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 210°C |
±2.5°C * |
3.0 s |
S |
* at 100°C
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 502■
|
Temperature range |
Tolerance (Internaal) |
|
0°C ≦ t ≦ 210°C |
±2.5°C |

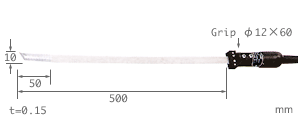

Type K Model 501K-TC1-ANP
Type E Model 501E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 250°C |
±2.5°C * |
4.0 s |
S |
* at 100°C
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 501■
|
Temperature range |
Tolerance (Internaal) |
|
-50°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t ≦ 250°C |
±2.5°C |

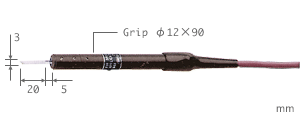

Type K Model 504K-TC1-ANP
Type E Model 504E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 500°C |
±2.5°C * |
6.0 s |
S |
* at 100°C
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 504■
|
Temperature range |
Tolerance (Internaal) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
