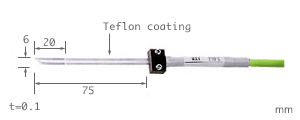

Type K Model 503K-TC1-ANP
Type E Model 503E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 210°C |
±2.5°C * |
3.0 s |
S |
* at 100°C
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 503■
|
Temperature range |
Tolerance (Internaal) |
|
0°C ≦ t ≦ 210°C |
±2.5°C |

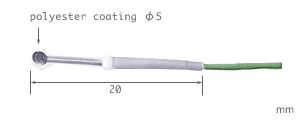

Type K Model 540K-TS1-ANP
Type E Model 540E-TS1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 100°C |
±2.5°C * |
8.0 s |
S |
* at 100°C
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 540■
|
Temperature range |
Tolerance (Internaal) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |

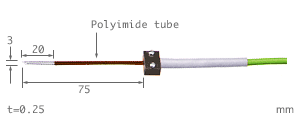

Type K Model 505K-TS1-ANP
Type E Model 505E-TS1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 400°C |
±2.5°C * |
6.0 s |
S |
* at 100°C
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 505■
|
Temperature range |
Tolerance (Internaal) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 400°C |
±(0.0075╳|t|)°C |
