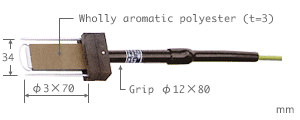

Type K Model 304K-TC1-ANP
Type E Model 304E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 220°C |
±2.5°C * |
1.5 s |
B |
* at 100°C
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 304■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 220°C |
±2.5°C |

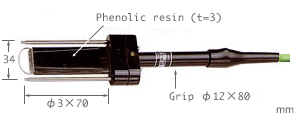

Type K Model 362K-TC1-ANP
Type E Model 362E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 350°C |
±2.5°C * |
1.5 s |
B |
* at 100°C
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 362■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 300°C |
±2.5°C |
|
300°C < t ≦ 350°C |
±3.0°C |

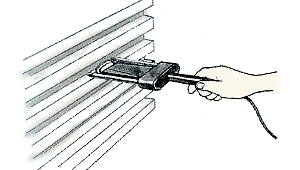

Slit type probes Applications
|
