Type K Model 123K-φ50-TC1-ANP
Type E Model 123E-φ50-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 250°C |
±2.5°C * |
2.0 s |
B |
* at 100°C Surface
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 123■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 200°C |
±2.5°C |
|
200°C < t ≦ 250°C |
±3.5°C |

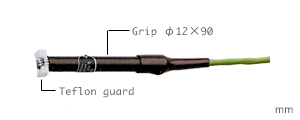

These probes are ideal for measuring the temperatures of surfaces having a small-radius bend, such as pipes.
Choose the most appropriate guard, based on the diameter of the measurement target.
|
Guard form |
Producible range |
Tolerance when specified |
|
|
φ9 to 15mm |
±1mm |
|
|
φ16 to 39mm |
±2mm |
|
φ40 to 100mm |
±5mm |

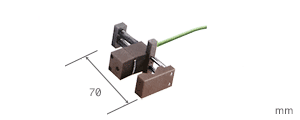

Type K Model 528K-TC1-ANP
Type E Model 528E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 210°C |
±2.5°C * |
3.0 s |
B |
* at 100°C Surface
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 528■
|
Temperature range |
Tolerance (Internaal) |
|
0°C ≦ t ≦ 210°C |
±2.5°C |

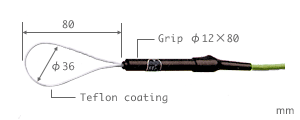

Type K Model 1811K-TS1-ANP
Type E Model 1811E-TS1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 100°C |
±2.5°C * |
2.0 s |
S |
* at 100°C Surface
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 1811■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 100°C |
±2.5°C |
|
