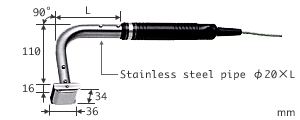

Temp. Range

Tolerance

Response time

Durability

-50 to 12000°C

±2.5°C *

15.0 s

B

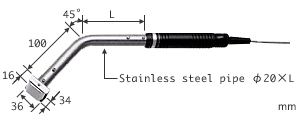

Temp. Range

Tolerance

Response time

Durability

-50 to 12000°C

±2.5°C *

15.0 s

B

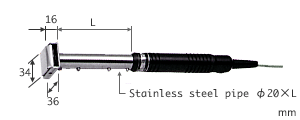

Temp. Range

Tolerance

Response time

Durability

-50 to 12000°C

±2.5°C *

15.0 s

B

Temperature range

Tolerance (Surface)

0°C ≦ t ≦ 100°C

±2.5°C

100°C < t ≦ 200°C

±3.8°C

200°C < t ≦ 300°C

±5.0°C

300°C < t ≦ 400°C

±6.3°C

400°C < t ≦ 500°C

±7.5°C

500°C < t ≦ 700°C

±(0.015╳|t|)°C

700°C < t ≦ 800°C

±(0.02╳|t|)°C

L

Pipe Length

010

100mm

020

200mm

030

300mm

050

500mm

100

1000mm
