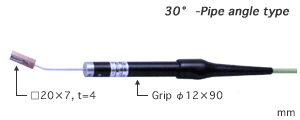

Type K Model 310K-TC1-ANP
Type E Model 310E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 250°C |
±2.5°C * |
0.5 s |
B |
* at 100°C Surface
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 310■ / 343■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 200°C |
±2.5°C |
|
200°C < t ≦ 250°C |
±3.0°C |

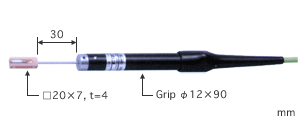

Type K Model 343K-TC1-ANP
Type E Model 343E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 250°C |
±2.5°C * |
0.5 s |
B |
for large heat-capacity

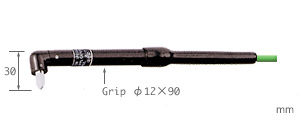

Type K Model 345K-TC1-ANP
Type E Model 345E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 600°C |
±2.5°C * |
2.5 s |
B |
* at 100°C Surface
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 345■ / 346■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 100°C |
±2.5°C |
|
100°C < t ≦ 200°C |
±3.1°C |
|
200°C < t ≦ 300°C |
±5.0°C |
|
300°C < t ≦ 400°C |
±6.3°C |
|
400°C < t ≦ 500°C |
±7.5°C |
|
500°C < t ≦ 600°C |
±(0.015╳|t|)°C |

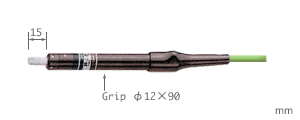

Type K Model 346K-TC1-ANP
Type E Model 346E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
-50 to 600°C |
±2.5°C * |
2.5 s |
B |
|
