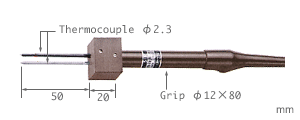

Type K Model 518K-TC1-ANP
Type E Model 518E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
0 to 700°C |
±2.5°C * |
2.0 s |
S |
* at 100°C
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
Model 518■ / 524■
|
Temperature range |
Tolerance (Internaal) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |

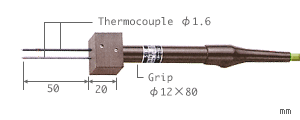

Type K Model 524K-TC1-ANP
Type E Model 524E-TC1-ANP
|
Temp. Range |
Tolerance |
Response time |
Durability |
|
0 to 700°C |
±2.5°C * |
2.0 s |
S |
* at 100°C
No Junction Type Probes Applications
This probe can not measure the internal temperature
of molten metal because the junction is formed
on the surface of molten metal.
|
