Flat Leaf Probes   Model  ST  series
Model ST series probes are multi-purpose temperature sensors featuring a flexible tape shape. They can be glued to the surfaces of measurement targets for use in a range of applications. Specific components may be combined to customize products for the needs of a customer's specific application.
How to order

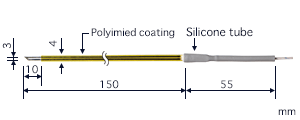

Type K Model ST-11K-010-TS1-ANP/ASP
Type E Model ST-11E-010-TS1-ANP/ASP

model ST series

Temp. Range

Tolerance

Response time

Durability

-50 to 210°C

±2.5°C *

2.0 s

S

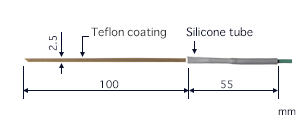

Type K Model ST-21K-010-TS1-ANP/ASP
Type E Model ST-21E-010-TS1-ANP/ASP

model ST series

Temp. Range

Tolerance

Response time

Durability

-50 to 210°C

±2.5°C *

2.0 s

S

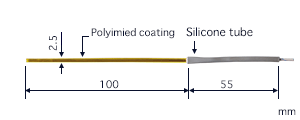

Type K Model ST-31K-010-TS1-ANP/ASP
Type E Model ST-31E-010-TS1-ANP/ASP

model ST series

Temp. Range

Tolerance

Response time

Durability

-50 to 210°C

±2.5°C *

2.0 s

S

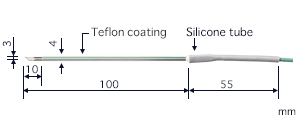

Type K Model ST-41K-010-TS1-ANP/ASP
Type E Model ST-41E-010-TS1-ANP/ASP

model ST series

Temp. Range

Tolerance

Response time

Durability

-50 to 210°C

±2.5°C *

2.0 s

S

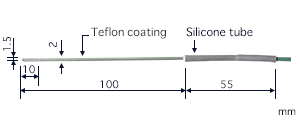

Type K Model ST-13K-015-GW1-ANP/ASP
Type E Model ST-13E-015-GW1-ANP/ASP

model ST series

Temp. Range

Tolerance

Response time

Durability

-50 to 400°C

±2.5°C *

2.0 s

S

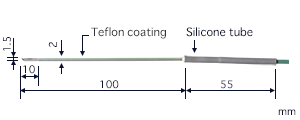

Type K Model ST-32K-010-TS1-ANP/ASP
Type E Model ST-32E-010-TS1-ANP/ASP

model ST series

Temp. Range

Tolerance

Response time

Durability

-50 to 210°C

±2.5°C *

8.0 s

S

Type K Model ST-44K-010-GW1-ANP/ASP
Type E Model ST-44E-010-GW1-ANP/ASP

model ST series

Temp. Range

Tolerance

Response time

Durability

-50 to 400°C

±2.5°C *

8.0 s

S

* at 100°C
