Self Supporting Probes Model WE series

Model WE series probes are temperature sensors designed for stationary surfaces. These self-supporting probes can be used to measure temperature simply by placing the probe on the measurement target. Specific components may be combined to customize products for the needs of a customer's specific application.

How to order

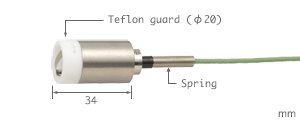

Type K Model WE-11K-TS1-ANP/ASP
Type E Model WE-11E-TS1-ANP/ASP

model WE series

Temp. Range	Tolerance	Response time	Durability
-50 to 250°C	±2.5°C *	1.0 s	A

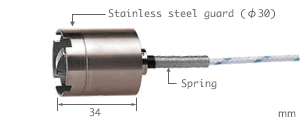

Type K Model WE-21K-TS1-ANP/ASP
Type E Model WE-21E-TS1-ANP/ASP

model WE series

Temp. Range	Tolerance	Response time	Durability
-50 to 250°C	±2.5°C *	1.0 s	A

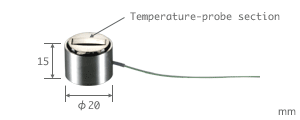

Type K Model WE-31K-TA1-ANP/ASP
Type E Model WE-31E-TA1-ANP/ASP

model WE series

Temp. Range	Tolerance	Response time	Durability
-50 to 200°C	±2.5°C *	2.0 s	A

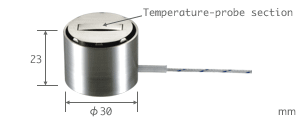

Type K Model WE-12K-GW1-ANP/ASP
Type E Model WE-12E-GW1-ANP/ASP

model WE series

Temp. Range	Tolerance	Response time	Durability
-50 to 500°C	±2.5°C *	1.0 s	A

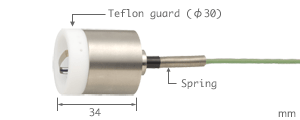

Type K Model WE-22K-GW1-ANP/ASP
Type E Model WE-22E-GW1-ANP/ASP

model WE series

Temp. Range	Tolerance	Response time	Durability
-50 to 500°C	±2.5°C *	1.0 s	A

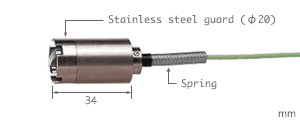

Type K Model WE-42K-GW1-ANP/ASP
Type E Model WE-42E-GW1-ANP/ASP

model WE series

Temp. Range	Tolerance	Response time	Durability
-50 to 500°C	±2.5°C *	2.5 s	A

* at 100°C Surface
