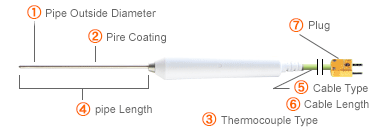

Pipe outside
diameter |
2 |
φ2.1mm(φ2.5mm) * |
|
3 |
φ3.0mm(φ3.4mm) * |
|
5 |
φ5.0mm |
|
9 |
φ5-Tipφ3mm |
|
|
Coating type |
1 |
Not coating |
|
2 |
Teflon coating
Only BW-22, BW-32 |
|
|
Thermocouple
Type |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Pipe Length |
010 |
100mm |
|
020 |
200mm |
|
030 |
300mm |
|
040 |
400mm |
|
050 |
500mm |
|
100 |
1000mm |
|
The pipe length of BW-91 is only "010" (100mm). |
|
|
Cable type
see cable page |
TC |
|
|
|
Cable Length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug |
ANPC |
Miniature connector with plug cover |
|
ASPC |
Standard plug with plug cover |
|
W |
|
* The dimension of "()" is the outside diameter including the thickness of
Teflon coating.
Pipe outside diameter
You can choose Pipe diameter and Form as below.
Coating Type
You can choose Coating Type as below.
The operating temperature limit of Teflon-coated probes is 200°C, regardless of pipe diameter.
Pipe Length
|
|
Pipe Diameter (mm) |
|
BW-2＊
(φ2.1) |
BW-3＊
(φ3) |
BW-51
(φ5) |
BW-91
(φ5-Tipφ3) |
|
010: |
◯ |
◯ |
◯ |
◯ |
|
015: |
◯ |
◯ |
◯ |
— |
|
020: |
◯ |
◯ |
◯ |
— |
|
030: |
◯ |
◯ |
◯ |
— |
|
050: |
◯ |
◯ |
◯ |
— |
|
100: |
◯ |
◯ |
◯ |
— |
Specifications
|
Pipe
Diameter |
Response
time |
Tolerance |
Durability
Rank |
|
BW-21 |
2.5 s |
±2.5°C |
B |
|
BW-22 |
20 s |
±2.5°C |
B |
|
BW-31 |
3 s |
±2.5°C |
B |
|
BW-32 |
20 s |
±2.5°C |
B |
|
BW-51 |
5 s |
±2.5°C |
B |
|
BW-91 |
3 s |
±2.5°C |
B |
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
BW-21■ / BW-31■ / BW-51■ / BW-91■
|
Temperature range |
Tolerance (Internal) |
|
-200°C ≦ t < -167°C |
±7.0°C |
|
-167°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
BW-22■ / BW-32■
|
Temperature range |
Tolerance (Internal) |
|
-200°C ≦ t < -167°C |
±7.0°C |
|
-167°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t < 200°C |
±2.5°C |
|
