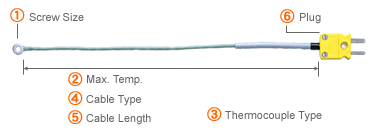

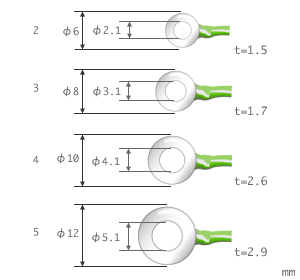

Screw Size

2

For φ2mm

3

For φ3mm

4

For φ4mm

5

For φ5mm

Max. Temp.

1

200°C (SC-21)
150°C (SC-31, SC-41, SC-51)

2

300°C (SC-22)
400°C (SC-32, SC-42, SC-52)

Thermocouple Type

K

Chromel-Alumel

E

Chromel-Constantan

Cable type
see cable page

TA*

For SC-21

TS

For SC-31, SC-41, SC-51

GW

For SC-22

SG

For SC-32, SC-42, SC-52

Cable length

1

1000mm

1.5

1500mm

2

2000mm

2.5

2500mm

…

……

Plug
see plug page

ANP

ASP

W

Tolerance

±3.0°C

Response time

5.0 s

Durability rank

S

Max. Temp

SC-21 : 200°C
SC-22 : 300°C
SC-31, SC-41, SC-51 : 150°C
SC-32, SC-42, SC-52 : 400°C

Temperature range

Tolerance (Internal)

-50°C ≦ t < -40°C

±3.5°C

-40°C ≦ t ≦ 200°C

±3.0°C

Temperature range

Tolerance (Internal)

-50°C ≦ t < -40°C

±3.5°C

-40°C ≦ t ≦ 300°C

±3.0°C

Temperature range

Tolerance (Internal)

-50°C ≦ t < -40°C

±3.5°C

-40°C ≦ t ≦ 150°C

±3.0°C

Temperature range

Tolerance (Internal)

-50°C ≦ t < -40°C

±3.5°C

-40°C ≦ t ≦ 300°C

±3.0°C

300°C < t ≦ 400°C

±4.0°C
