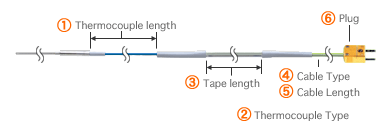

Thermocouple length |
01 |
100mm |
|
02 |
200mm |
|
… |
…… |
|
90 |
9000mm |
|
|
Thermocouple type |
K |
Chromel - Alumel |
|
E |
Chromel - Constantan |
|
|
Tape length |
0 |
Without tape |
|
1 |
100mm |
|
… |
…… |
|
9 |
900mm |
|
|
Cable type see cable page |
TS |
|
|
|
Cable length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug see plug page |
ANP |
|
|
ASP |
|
|
W |
|
Specifications
|
Tolerance |
± 2.5°C (at 100°C) |
|
Response time |
1.5 s |
|
Durability rank |
C |
|
Temp. range |
-100 to 200°C |
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
BR-＊＊■
|
Temperature range |
Tolerance (Internal) |
|
-100°C ≦ t < -40°C |
±3.5°C |
|
-40°C ≦ t ≦ 200°C |
±2.5°C |
It is possible to insert through a door.
Ideal for measuring temperature of liquid, semi-solid or air
|
