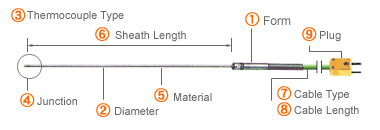

Form |
A |
Grip type |
|
B |
Sleeve type |
|
C |
Terminal box type |
|
AH |
Grip type/Teflon coating |
|
BH |
Sleeve type/Teflon coating |
|
CH |
Terminal box type/Teflon coating |
|
|
Diameter |
0.25 |
φ0.25mm |
|
0.5 |
φ0.5mm |
|
1.0 |
φ1.0mm |
|
1.6 |
φ1.6mm |
|
3.2 |
φ3.2mm |
|
4.8 |
φ4.8mm |
|
6.4 |
φ6.4mm |
|
8.0 |
φ8.0mm |
|
|
Thermocouple Type |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Junction |
J1 |
Grounded junction |
|
J2 |
Ungrounded junction |
|
J3 |
Exposed junction |
|
|
Material |
M1 |
SUS 316 |
|
M2 |
SUS 310S (Only type K) |
|
M3 |
Inconel (Only type K) |
|
|
Sheath Length |
L100 |
100mm |
|
L200 |
200mm |
|
… |
…… |
|
|
Cable Type
see cable page |
TC |
|
|
|
Cable Length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|

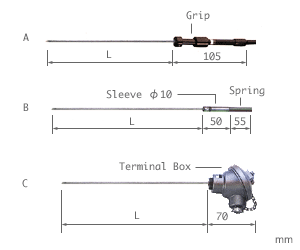

Form
You can choose Form as below.

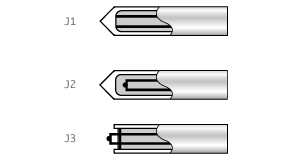

Junction
Supplementary information
The sheath tube can be coated with Teflon.
Teflon coating will improve resistance against chemicals and enable the use of the probe for measuring the temperatures of acids alkalis, food. etc.
Applicable sheath diameter : φ1.0, φ1.6, φ3.2
Maximum length : 1m
Operating temperature limit : 200°C
Minimum bending radius : Approx. 10mm
Specifications
|
Outside diameter (mm) |
0.25 |
0.5 |
1.0 |
1.6 |
3.2 |
4.8 |
6.4 |
8.0 |
|
Type : K Max.temp.(°C) |
SUS316(M1) |
— |
— |
650 |
650 |
750 |
800 |
800 |
900 |
|
SUS310S(M2) |
— |
— |
650 |
650 |
750 |
800 |
800 |
900 |
|
Inconel(M3) |
500 |
500 |
650 |
650 |
750 |
900 |
1000 |
1050 |
|
Type : E Max.temp.(°C) |
SUS316(M1) |
— |
— |
650 |
650 |
750 |
800 |
800 |
800 |
|
Response time (sec.) |
0.4 |
0.9 |
2 |
3 |
5 |
10 |
15 |
20 |
|
Standard resistance (Ω / m) |
Type : K |
570 |
124 |
32 |
13 |
4 |
2.2 |
1.0 |
0.7 |
|
Type : E |
— |
― |
38 |
15 |
5 |
2.6 |
1.2 |
0.9 |
|
Max. Length (m) |
J1, J3 |
5 |
10 |
50 |
50 |
50 |
50 |
30 |
20 |
|
J2 |
2 |
2 |
2 |
5 |
15 |
30 |
30 |
20 |
|
Tolerance |
Type : K |
-40 to 333°C : ±2.5°C, 333 to 1200°C : ±(measuring×0.75%)°C |
|
Type : E |
-40 to 333°C : ±2.5°C, 333 to 900°C : ±(measuring×0.75%)°C |
Avoid immersing these probes in molten aluminum. Doing so may result in corrosion of the sheathed sensor.
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
A0.25-K / A0.5-K / B0.25-K / B0.5-K
|
Temperature range |
Tolerance (Internal) |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
A1.0-■ / A1.6-■ / B1.0-■ / B1.6-■ / C1.0-■ / C1.6-■
|
Temperature range |
Tolerance (Internal) |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 650°C |
±(0.0075╳|t|)°C |
A3.2-■ / B3.2-■ / C3.2-■
|
Temperature range |
Tolerance (Internal) |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 750°C |
±(0.0075╳|t|)°C |
A4.8-■-J＊-M1 / A4.8-K-J＊-M2
A6.4-■-J＊-M1 / A6.4-K-J＊-M2 / A8.0-E-J＊-M1
B4.8-■-J＊-M1 / B4.8-K-J＊-M2
B6.4-■-J＊-M1 / B6.4-K-J＊-M2 / B8.0-E-J＊-M1
C4.8-■-J＊-M1 / C4.8-K-J＊-M2
C6.4-■-J＊-M1 / C6.4-K-J＊-M2 / C8.0-E-J＊-M1
|
Temperature range |
Tolerance (Internal) |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 800°C |
±(0.0075╳|t|)°C |
A4.8-K-J＊-M3 / A8.0-K-J＊-M1 / A8.0-K-J＊-M2
B4.8-K-J＊-M3 / B8.0-K-J＊-M1 / B8.0-K-J＊-M2
C4.8-K-J＊-M3 / C8.0-K-J＊-M1 / C8.0-K-J＊-M2
|
Temperature range |
Tolerance (Internal) |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 900°C |
±(0.0075╳|t|)°C |
A6.4-K-J＊-M3 / B6.4-K-J＊-M3 / C6.4-K-J＊-M3
|
Temperature range |
Tolerance (Internal) |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 1000°C |
±(0.0075╳|t|)°C |
A8.0-K-J＊-M3 / B8.0-K-J＊-M3 / C8.0-K-J＊-M3
|
Temperature range |
Tolerance (Internal) |
|
-40°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 1050°C |
±(0.0075╳|t|)°C |
AH＊＊-■ / BH＊＊-■ / CH＊＊-■
|
Temperature range |
Tolerance (Internal) |
|
-40°C ≦ t ≦ 200°C |
±2.5°C |
|
