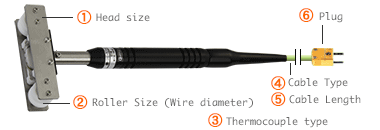

Head Size
(Wire diameter) |
3 |
For φ0.65 to 3mm
(MW-＊1, MW-＊2, MW-＊3) |
|
4 |
For φ3 to 15mm
(MW-＊4, MW-＊5, MW-＊6) |
|
|
Roller Size
(Wire diameter) |
1 |
φ0.65 to 1mm (for MW-3＊) |
|
2 |
φ1 to 2mm (for MW-3＊) |
|
3 |
φ2 to 3mm (for MW-3＊) |
|
4 |
φ3 to 5mm (for MW-4＊) |
|
5 |
φ5 to 10mm (for MW-4＊) |
|
6 |
φ10 to 15mm (for MW-4＊) |
|
|
Thermocouple |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Cable type
see cable page |
TC |
|
|
|
Cable length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|

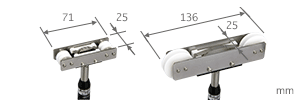

Head Size
You can choose Head size as below.
Roller Size
You can choose Roller size as below.
|
|
Wire diameter |
Head size |
|
1 |
φ0.65 to 1mm |
|
|
2 |
φ1 to 2mm |
|
3 |
φ2 to 3mm |
|
4 |
φ3 to 5mm |
|
|
5 |
φ5 to 10mm |
|
6 |
φ10 to 15mm |
Specifications
|
Tolerance |
±2.5°C (at 100°C surface) |
|
Response time |
5.0 s |
|
Durability rank |
S |
|
Max. Temp |
250°C |
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
MW-3＊■ / MW-4＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 200°C |
±2.5°C |
|
200°C < t ≦ 250°C |
±3.0°C |
|
