| Flat Type Rotating Surface Probes Model UH series |
|
|
|
|

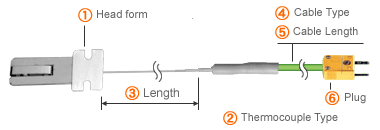

Head form |
11 |
|
|
12 |
|
|
16 |
|
|
17 |
|
|
|
Thermocouple Type |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Length |
03 |
300mm |
|
05 |
500mm |
|
10 |
1000mm |
|
|
Cable type
see cable page |
TS |
|
|
|
Cable length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|
Head form
Specifications
|
Tolerance |
2.5°C (at 100°C surface) |
|
Response time |
4.0 s |
|
Durability rank |
S |
|
Max. Temp |
210°C |
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
UH-1＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 100°C |
±2.5°C |
|
100°C < t ≦ 200°C |
±7.0°C |
|
200°C < t ≦ 210°C |
±8.0°C |
|
|
