Style and Heavy duty |
1 |
Setting type |
|
2 |
Setting type (Heavy duty) |
|
3 |
Grip type |
|
2 |
Grip type (Heavy duty) |
|
|
Guard Form |
1 |
Flat (only SH-1＊, SH-3＊) |
|
2 |
φ20mm |
|
3 |
φ30mm |
|
4 |
φ40mm |
|
5 |
φ50mm |
|
6 |
φ60mm |
|
|
Thermocouple |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Cable Type
see cable page |
TS |
For SH-1＊, SH-2＊ (Setting type) |
|
TC |
For SH-3＊, SH-4＊ (Grip type) |
|
|
Cable Length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|
Style and Heavy duty
You can choose Style and Heavy duty as below.
|
Setting Type |
Standard
Heavy Duty |
1 :
2 : |
|
|
Grip Type |
Standard
Heavy Duty |
3 :
4 : |
|

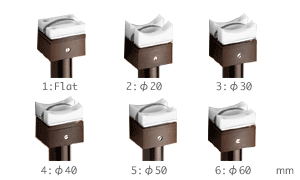

Guard Form
You can choose Guard Form φ as below.
Specifications
|
Tolerance |
±2.5°C (at 100°C surface) |
|
Response time |
5.0 s |
|
Durability rank |
SH-1＊, SH-3＊ : B
SH-2＊, SH-4＊ : A |
|
Max. Temp |
250°C |
Tolerance
＊ : Number
■ : Thermocouple type K or E
t : Measured temperature
SH-＊＊■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t ≦ 200°C |
±2.5°C |
|
200°C < t ≦ 250°C |
±3.0°C |
|
