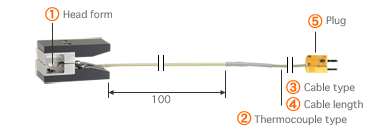

Head form

03

For φ 3mm

04

For φ 4mm

05

For φ 5mm

06

For φ 6mm

Thermocouple type

K

Chromel - Alumel

E

Chromel - Constantan

Cable type see cable page

TS

Cable length

1

1000mm

1.5

1500mm

2

2000mm

2.5

2500mm

…

……

Plug see plug page

ANP

ASP

W

03

For φ 3mm

04

For φ 4mm

05

For φ 5mm

06

For φ 6mm

Tolerance

±2.5°C (at 100°C surface)

Response time

2.0 s

Durability rank

S

Max. Temp.

300°C

Temperature range

Tolerance (Surface)

0°C ≦ t ≦ 100°C

±2.5°C

100°C < t ≦ 200°C

±4.5°C

200°C < t ≦ 300°C

±7.5°C
