| High Temperature Probes Model HHT series |
|
|
|
|
Tempe. range |
4 |
-50 to 800°C |
|
5 |
300 to 1100°C |
|
|
Pipe angle |
1 |
Straight |
|
2 |
45 degrees |
|
3 |
90 degrees |
|
|
Thermocouple Type |
K |
Chromel-Alumel |
|
|
Pipe Length |
05 |
500mm |
|
… |
…… |
|
10 |
1000mm |
|
… |
…… |
|
15 |
1500mm |
|
… |
…… |
|
20 |
2000mm |
|
|
Cable type
see cable page |
TC |
|
|
|
Cable Length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|

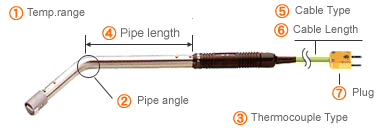

Pipe angle
Pipe lehgth
Specifications
|
Tolerance |
±3.8°C (at 500°C surface) |
|
Response
time |
HHT-4＊ |
4s |
|
HHT-5＊ |
5s |
|
Durability
rank |
HHT-4＊ |
|
800°C : More than 60,000 contacts |
|
HHT-5＊ |
|
800°C : More than 60,000 contacts
900°C : More than 15,000 contacts
1000°C : More than 5,000 contacts
1100°C : More than 300 contacts |
|
Max. temp. |
HHT-4＊ |
800°C |
|
HHT-5＊ |
1100°C |
Tolerance
＊ : Number
t : Measured temperature
HHT-4＊K
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
|
500°C < t ≦ 700°C |
±(0.015╳|t|)°C |
|
700°C < t ≦ 800°C |
±(0.02╳|t|)°C |
HHT-5＊K
|
Temperature range |
Tolerance (Surface) |
|
300°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
|
500°C < t ≦ 700°C |
±(0.015╳|t|)°C |
|
700°C < t ≦ 800°C |
±(0.02╳|t|)°C |
|
|
