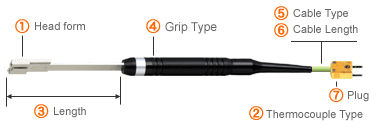

| Flat Head Probes Model TH series |
|
|
|
|
Head form |
14 |
|
|
|
Thermocouple Type |
K |
Chromel-Alumel |
|
E |
Chromel-Constantan |
|
|
Length |
010 |
100mm |
|
015 |
150mm |
|
020 |
200mm |
|
|
Grip type |
1 |
Grip |
|
|
Cable type |
TC |
see cable page |
|
|
Cable length |
1 |
1000mm |
|
1.5 |
1500mm |
|
2 |
2000mm |
|
2.5 |
2500mm |
|
… |
…… |
|
|
Plug
see plug page |
ANP |
|
|
ASP |
|
|
W |
|
Head form
|
Front view of tip section |
|
|
Side view of tip section |
|
Length
|
010 : 100mm |
|
|
015 : 150mm |
|
020 : 200mm |
Specifications
|
Tolerance |
±2.5°C (at 100°C surface) |
|
Response time |
2.0 s |
|
Durability rank |
A |
|
Max. Temp |
500°C |
Tolerance
■ : Thermocouple type K or E
t : Measured temperature
TH-14■
|
Temperature range |
Tolerance (Surface) |
|
0°C ≦ t < 333°C |
±2.5°C |
|
333°C ≦ t ≦ 500°C |
±(0.0075╳|t|)°C |
|
|
