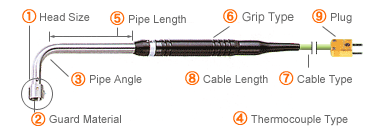

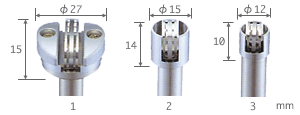

Head size

1

dia 27mm

2

dia 15mm

3

dia 12mm

Guard Material
(Max. Temp.)

1

Teflon (300°C)

2

Polyimide (400°C)

3

Stainless (500°C)

4

Stainless for High Temp. (800°C)

5

Teflon coating (200°C)
(Element is coated by Teflon)

6

Polymide coating (300°C)
(Element is coated by polyimide)

7

Without Guard (500°C)
(only N-1＊＊)

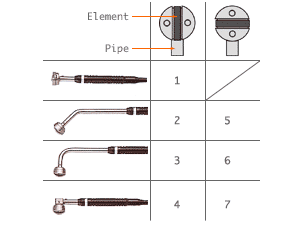

Pipe Angle

1

Straight

2

45 degrees

3

90 degrees

4

90 degrees (elbow)

5

45 degrees *

6

90 degrees *

7

90 degrees (elbow) *

*element direction of right angle

Thermocouple

K

Chromel-Alumel

E

Chromel-Constantan

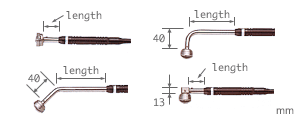

Pipe length

00

30mm

01

100mm

02

200mm

…

……

10

1000mm

15

1500mm (only N-14＊)

20

2000mm (only N-14＊)

Grip type

0

No Grip

1

Standard Grip

Cable type
see cable page

TC

Cable Length

1

1000mm

1.5

1500mm

2

2000mm

2.5

2500mm

…

……

Plug
see plug page

ANP

ASP

W

No Grip

For device, system, auto-machines,mechanical system etc

Standard

For handheld measurement

Tolerance

±2.5°C (at 100°C surface)

Response time

1.5 s
6 s in the case of coated element
(N-＊5＊, N-＊6＊)

Durability rank

A

Maximum allowable tilt

±4° (N-2＊＊, N-3＊＊)
±8° (N-1＊＊)

Temperature range

Tolerance (Surface)

0°C ≦ t ≦ 300°C

±2.5°C

Temperature range

Tolerance (Surface)

0°C ≦ t < 333°C

±2.5°C

333°C ≦ t ≦ 400°C

±(0.0075╳|t|)°C

Temperature range

Tolerance (Surface)

0°C ≦ t < 333°C

±2.5°C

333°C ≦ t ≦ 500°C

±(0.0075╳|t|)°C

Temperature range

Tolerance (Surface)

0°C ≦ t < 333°C

±2.5°C

333°C ≦ t ≦ 500°C

±(0.0075╳|t|)°C

500°C < t ≦ 700°C

±(0.015╳|t|)°C

700°C < t ≦ 800°C

±(0.02╳|t|)°C

Temperature range

Tolerance (Surface)

0°C ≦ t ≦ 200°C

±2.5°C
