DIGITAL FORCE GAUGE WITH USB OUTPUT
|
• |
High Speed 2000 Hz Sampling Rate |
|
• |
0.3% Acuracy |
|
• |
Ultra-Compact Size |
|
• |
4 Selectable Units of Measure |
|
• |
USB Data Output |
|
• |
Programmable Setpoints with Pass/Fail Indicators |
|
• |
Large Backlit Graphics Display |
|
• |
Live Load Bar Graph with Set Point Markers |
|
• |
Peak Readings and Set- Points Always Displayed |
|
• |
Configurable Audio Alarms and Key Tones |

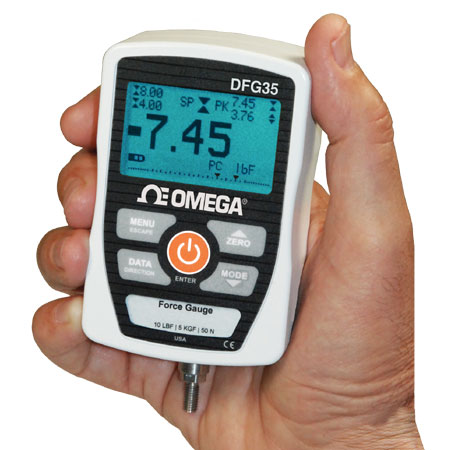

OMEGA’s DFG35 Series is an economical digital force gauge designed for tension and compression measurements in a variety of applications. They are available in ranges from 0.12 to 500 lbF (0.5 to 2500 N) and have a 2000 Hz sample rate. A backlit graphic LCD displays large characters and a menu is available to access the gauges features and configurable parameters. Units have a USB output for data collection and setpoint indicators for pass-fail testing.
SPECIFICATIONS
Accuracy: 0.3% of full scale ± 1 digit
Power: Rechargeable battery or AC using adaptor (batteries and adaptor included)
Battery Life: Up to 7 hours continuous use with backlight on or 24 hours with backlight off
Low Battery: Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Measurement Units: lbF, gF, kgF, N (depending on model)
Safe Overload: 150% of full scale (display shows “OVER” at 110% and above)
Full Scale Deflection: All models 0.25 mm (0.01") except DFG35-0.12, 0.13 mm (0.05")
Configurable Settings: Digital filters, USB output, automatic shutoff, default settings, key tones, audio alarms, calibration
Dimensions: 99.1 H x 64.3 W x 38.1 mm D (3.90 x 2.53 x 1.50")
Weight: 100 lb and below, 0.33 kg (0.7 lb) 200 or 500 lb, 0.41 kg (0.9 lb) |
