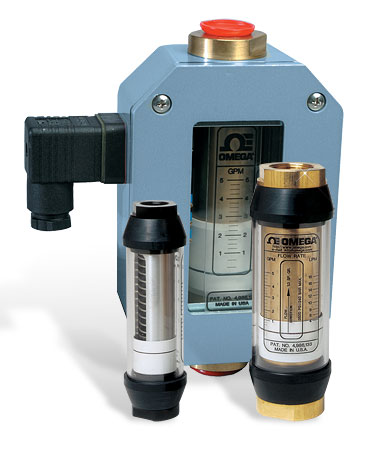

In-line Liquid Flowmeters
|
• |
Direct Reading Scale |
|
• |
Range 0.05 to 150 gpm |
|
• |
High Pressure: 3500 psi (Brass Aluminum); 6000 psi (Stainless Steel) |
|
• |
High Temperature: to 116°C (240°F) (Standard) or 204°C or 316°C (400 or 600°F) (Optional) |
|
• |
Mounts in Any Position |
|
• |
Relay Alarms and Analog Outputs Optional |
The FLMW and FLMH flowmeters can be installed directly in the fluid line without flow straighteners or special piping. The spring-and-piston type assembly enables these flowmeters to be mounted in any position and protects them against changes in viscosity.
The FLMW or the FMLH Series with the optional analog output (-MA) are typically used to transmit a signal proportional to the flow rate to a process controller, a PLC, a recorder, or a panel-mount display. With the -MA options the user can choose between reading a 0 to 2000 Hz square-wave pulse, a 0 to 5 Vdc analog signal, or a 2-wire 4 to 20 mA analog signal by connecting the appropriate pins.
SPECIFICATIONS
Accuracy: ±2.5% FS in the center third of the measuring range; ±4% FS over the entire scale range
Repeatability: ±1%
Flow Measuring Range: 0.2 - 560 lpm (0.05 - 150 gpm)
Maximum Operating Pressure:
Aluminum and brass monitors: 3500 psig (240 Bar)
Stainless steel monitors: 6000 psig (410 Bar) up to 116°C (240°F)
Maximum Operating Temperature:
Standard Models: 116°C (240°F)
High Temp (-HT) Models: 204°C (400°F) max
Ultra High Temp (-UHT) Models: 316°C (600°F) max
Pressure Differential: download spec sheet for pressure drop graphs
Standard Calibration Fluids:
Oil monitors: DTE 25 @ 43°C (110°F), 0.873 sg
Water monitors: tap water @ 21°C (70°F), 1.0 sg
Maximum Particle Size: 76 microns
Relay (Optional): 1 or 2 form “C” relays, rated 10 A @ 125 or 250 Vac or 0.25 A @ 250 Vdc
Mechanical Life: >107 cycles
Analog Output (Optional): Supply voltage 12 to 35 Vdc, field selectable for 0 to 5 Vdc (100 W minimum load), 0 to 2000 Hz square-wave pulse or 4 to 20 mA; Rmax = 50 (Vs-12). Vs = supply voltage DC
Installation Dimensions:
1/4 and 1/2 NPT Sizes: 1-7/8 OD x 6.6" length
3/4 and 1 NPT Sizes: 2-3/8 OD x 7.2" length
1-1/4 and 1-1/2 NPT Sizes: 3-1/2 OD x 10.1" length
|
Materials of Construction (Wetted Parts) |
|
Description |
Aluminum
(Not for Water) |
Brass |
Stainless Steel |
|
High pressure casing, end ports and tapered shaft |
Aluminum |
Brass |
304 SS |
|
Seals |
Buna (std), EPR, FKM or perfluoroelastomer |
Buna (std), EPR, FKM or perfluoroelastomer |
FKM with PTFE backup (std) Buna, EPR or perfluoroelastomer |
|
Transfer Magnet |
PTFE-coated Alnico |
PTFE-coated Alnico |
PTFE-coated Alnico |
|
Floating Orifice Disk |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
All Other Internal Parts |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
Materials of Construction (Non-Wetted Components) |
|
Description |
Aluminum |
Brass |
Stainless Steel |
|
Window Tube |
Polycarbonate (std), Pyrex® |
Polycarbonate (std), Pyrex® |
Polycarbonate (std), Pyrex® |
|
Window Seals |
Buna (std), PTFE |
Buna (std), PTFE |
Buna (std), PTFE |
Examples of popular models in the "To Order" box. Use the "Part Number Builder" to get
pricing for many other available models.
|
