In-line Flow meters
|
• |
Direct Reading Scales |
|
• |
Low Pressure Drop - 2 psi Max |
|
• |
Liquid Flowmeter |

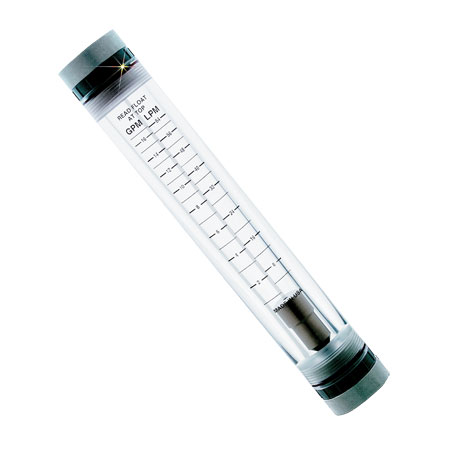

The FL46300 Series of liquid in-line flow meters offer individual, handmade quality, combined with excellent accuracy and repeatability. These flowmeters are machined of high quality acrylic rod stock, carefully polished to a clear-as-glass finish. Easy to read scales are screen printed on the meter body. Adaptors are glass-filled polypropylene, and O-ring seals are FKM.
SPECIFICATIONS
Accuracy: ±5%
Meter Body: Acrylic
O-Ring Material: FKM
Float: 316 SS (PVC for FL46302)
Temperature Limit: 65°C (150°F) at 0 psig
Pressure Limit: 150 psig at 21°C (70°F)
Pressure Drop: 2 psi max
Dimensions:
FL46301-06: 208 H x 32 mm D (83⁄16 x 11.4")
FL46307-09: 279 H x 32 mm D (11 x 11.4")
Weight: 680 g (1.5 lb) |
