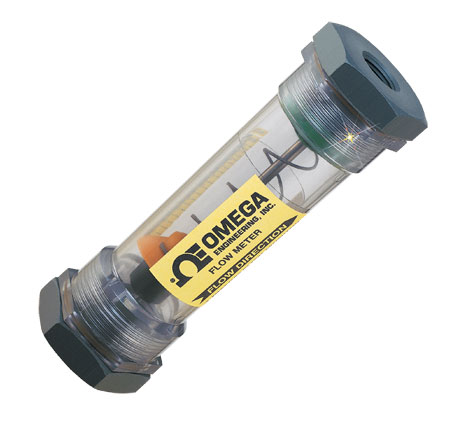

Flowmeters (RP)   FL-500WW Series

In-line Flowmeters for water and wastewater treatment

Direct Flow Indication

PVC Body and End Fittings

Titanium Shaft and Spring

Easily Mounted in Any Pipe Orientation Typical Applications:

Aluminum Sulfate (Alum) -Clarification

Chlorinated Water -Disinfection

Ferric Chloride -Clarification

Potassium Permanganate -Disinfection

Sodium Bisulfite -Disinfection

Sodium Hypochlorite (Bleach) -Disinfection

Sodium Hydroxide -Neutralization

Sulfur Dioxide (in Water) -Dechlorination

Chlorine Dioxide -Disinfection

The FL-500WW Series provides flowrate indication for 1 to 5% dilute aqueous chemical solutions used in the treatment of water and wastewater.
Specifications:

Model No.

End
Fittings

Dual Scales

Diameter:

Length:

GPM

LPM

FL-505WW

1 FNPT

0.5 to 5

2 to 20

50.8 mm (2")

177.8 mm (7")

FL-510WW

1 FNPT

1 to 10

4 to 38

FL-515WW

1 FNPT

1.5 to 15

6 to 55

FL-520WW

1½ FNPT

2 to 20

8 to 75

76.2 mm (3")

177.8 mm (7")

FL-530WW

1½ FNPT

3 to 30

11 to 110

FL-540WW

1½ FNPT

4 to 40

15 to 150

FL-550WW

1½ FNPT

5 to 50

20 to 200
