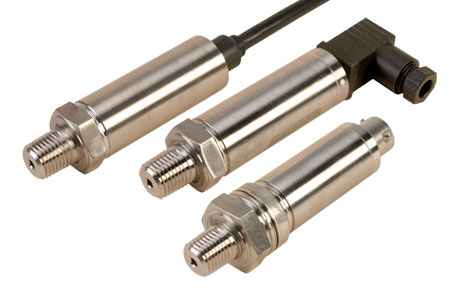

PX409 Series High Accuracy Pressure Transducers
Now with 0.05% Accuracy and 0.03% Linearity Options
|
• |
FAST DELIVERY! |
|
• |
Digital Dynamic Thermal Compensation Across Temperature and Pressure Range |
|
• |
High Standard Accuracy 0.08% BSL included Linearity, Repeatability and Hysteresis |
|
• |
NEW! High Accuracy Options
0.05% Accuracy Option, add Suffix "-EH"
0.03% Linearity Option, add Suffix "-XL" |
|
• |
5-Point NIST Traceable Calibration Included with All Models |
|
• |
316 Stainless Steel Wetted Parts
Welded Stainless Steel Case |
|
• |
Now Available with M12 Connector, Order Model PX459
(See Part Number Builder at bottom of page) |
|
• |
Broad Temperature Compensated Range
-29 to 85°C (-20 to 185°F) |
|
• |
Premium Temperature Performance Span: ±0.5% over Compensated Range |
|
• |
Long Term Stability for Calibraon Laboratories |
|
• |
Low Pressure Ranges from 10 in-H2O |
|
• |
Absolute Pressure from 5 to 1000 psia |
|
• |
Fast Response Time |
|
• |
Solid State Reliability and Stability |
|
• |
Gage and Absolute Pressures |
|
• |
300% Proof Pressure Minimum |
|
• |
Shock and Vibration Tested
|
The PX409 Series is also available in metric configurations, with ranges from 0-25 mb to 0-350 bar and G 1/4 metric fitting. Please see the PXM409 for complete details, or contact our Pressure department for more information.
Omega's high accuracy piezoresistive pressure transducers have a proven record in high performance commercial and aerospace applications for over 25 years. The piezoresistive process uses strain gages molecularly embedded into a highly stable silicon wafer. The silicon wafer is diced into individual die which each contain a full strain gage bridge. The die is mounted in a sealed chamber protected from the environment by glass to metal seals and a stainless steel diaphragm.
A small volume of silicone oil transfers the pressure from the diaphragm to the strain bridge. The construction provides a very rugged transducer with exceptional accuracy, stability and thermal effects. A unique design ruggedizes the transducers by providing secondary fluid containment in the event of a diaphragm rupture.
At our state-of-the-art facilities, automated test equipment performs pressure and temperature cycling on 100% of the PX409 transducers. The transducers are then calibrated using extremely high accuracy equipment and a 5-point NIST traceable calibration certificate is included with each transducer. To obtain their high accuracy and stability, the PX409 Series use state of the art digital mapping of the temperature, pressure and output performance of the silicon sensor in conjunction with a custom ASIC to provide dynamic thermal compensation across the temperature and pressure parameters. The inherent stability of the piezoresistive core provides excellent long term stability, repeatability and very low thermal effects at the price of much lower performance transducers. Standard features of the PX409 Series also include protective features built into the electronics and the pressure element. Reverse polarity, EMC, and power supply fluctuation protection are standard on all models. For Intrinsically Safe and CSA ratings see model PX509.
The most popular ranges and configurations are stocked for immediate delivery. All others typically have very short lead-time.
|
|
Still can't find the right model? Specify the perfect transducer for your application with this easy, step-by-step configurator.
|
EXTRA HIGH ACCURACY MODELS
To Order:
Extra High 0.05% Accuracy Models add suffix "-EH", $100 add'l
Extreme 0.03% Linearity Models add suffix "-XL", $200 add'l
See the Part Number Builder below the To Order Table.
(Options are mutually exclusive)
|
