| Pressure Gauge with Diaphragm Seal PGR Series Diaphragm Seal Pressure Guages |
|

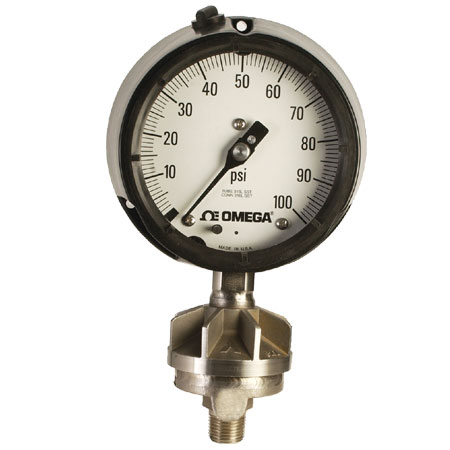

Pressure Gauge with Diaphragm Seal
|
• |
All-Welded Seal to Gauge Design and Seamless Bourdon Tube Provide Fewer Leak Paths than Competitive Models |
|
• |
Stainless Steel Wetted Parts and Bourdon Tube |
|
• |
Liquid Fillable Gauge Case with Bladder |
|
• |
Tamper Resistant Design |
|
• |
Compact Size to Fit Applications with Space Constrants |
|
• |
Applications |
|
• |
Chemical and Petrochemical Processing Plants |
|
• |
Petrochemical Refineries |
|
• |
General Processing such as Food and Pharmaceutical |
OMEGA’s PGR Series All-welded gauge and seal offers customers a lower cost alternative to an individual gauge and diaphragm seal with the added advantage of a reduction in potential leaks. The wetted parts are 316L stainless steel. The process connection is a ½ NPT male bottom mount.
Specificat ions
Accuracy: ± 0.5% of span (grade 2A)
Case Size: 114 mm (4.5") diameter
Process Connection: ½ MNPT bottom connection
Seal Upper Material: 316L stainless steel
Diaphragm Material: 316L stainless steel
System Fill Type: DC200
Operating Temperature: 143°C (225°F)
Higher with cooling element PG-CT2 |
|
