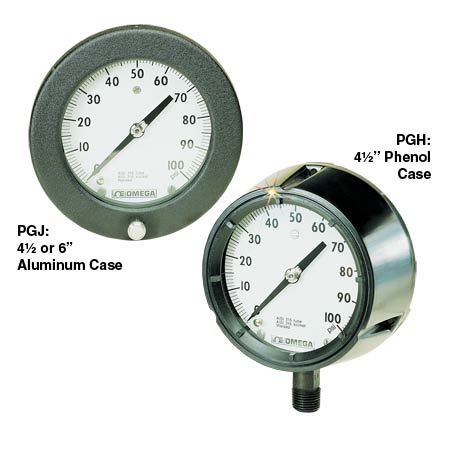

PGH,PGJ Series
Industrial Process Pressure Gauges with 4.5 and 6-inch Dials, Black Phenol or Aluminum Case
|
• |
0.5% FS Accuracy |
|
• |
PGH Gauge Ranges from 15 psi to 20,000 psi |
|
• |
Double-Strength Shatter-Resistant Glass |
|
• |
Heavy Duty 316 SS Wetted Parts |
|
• |
Easily Adjustable, Self-Locking Micrometer Dial |
|
• |
PTFE Coated SS Movement for Long Lasting Accuracy |
|
• |
Solid Front with Blowout Back |
|
• |
Fully Temperature Compensated |
SPECIFICATIONS
Dial Arc: 270°
Case: Lower Connection
PGH: 4½" dial, lower or back connection; Black Phenol
PGJ: 4½" or 6" dial; back connection; Aluminum case
Window: Double-Strength Glass
Bourdon Tube: 316 Stainless Steel
Connection: ½ NPT Male, 316 SS
Mounting: Stem, Flush or Surface
Operating Temperature: 121°C (250°F) Max. |
